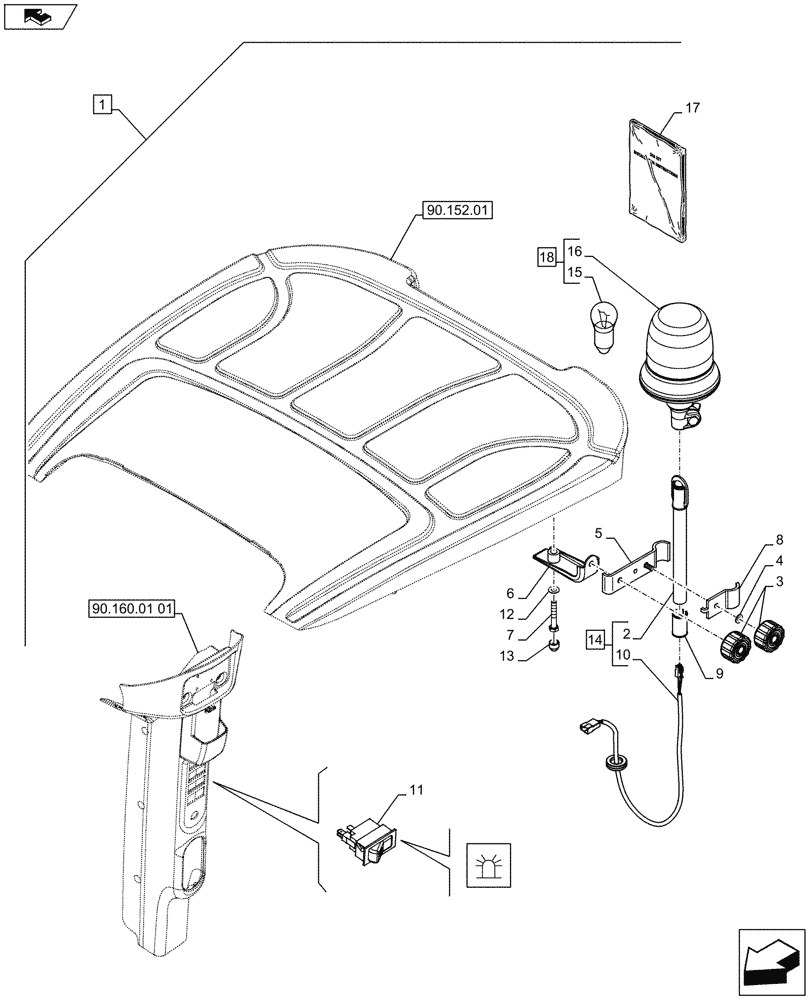

Запчасти Case IH FARMALL 65C (88.055.02[01]) - DIA KIT - 1 ROTARY BEACON - ISO - W/ CAB (88) - ACCESSORIES

1

710762250

DIA KIT, TRACTOR

Beacon Contains Ref. 2 - 18

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82027653

SUPPORT

1шт.

3

82016257

KNOB

2шт.

4

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

84343028

BRACKET

1шт.

6

84343080

BRACKET

1шт.

7

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

8

82028975

BRACKET

1шт.

9

82028965

SLEEVE,24mm ID x 28mm OD x 41.0mm L

1шт.

10

84591874

WIRE HARNESS

1шт.

11

84275431

BEACON SWITCH

1шт.

12

12602474

WAVE WASHER,Wave, M8.3

1шт.

13

5089481

CAP,17mm OD

1шт.

14

84592146

WIRE HARNESS

Assy, Incl 2, 10

1шт.

15

86616248

BULB,H1, 12V, 55W

1шт.

16

NSS

NOT SOLD SEPARAT

Body Lamp, Incl in 1

1шт.

17

84470301

INSTRUCTION

1шт.

18

87723255

BEACON,12V, 55W, Amber

Assy, Incl 15, 16

1шт.
