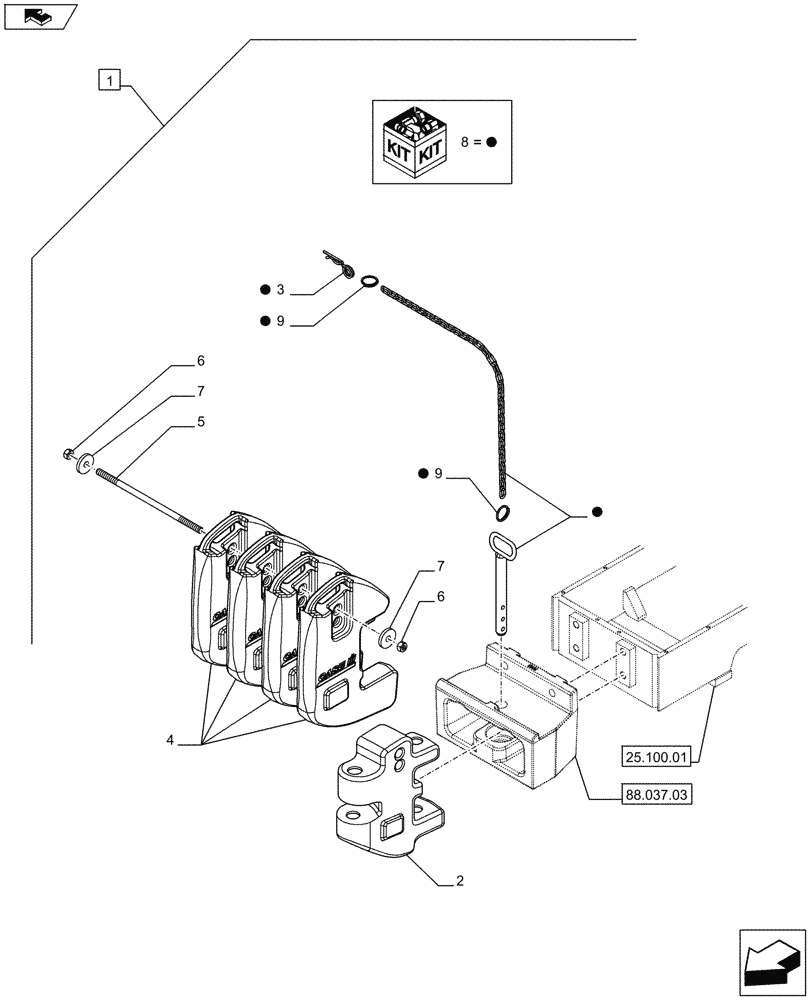

Запчасти Case IH FARMALL 65C (88.037.05) - DIA KIT - 4 WEIGHTS 40KG - 1 WEIGHT FTH 80KG (88) - ACCESSORIES

1

710247250

DIA KIT, TRACTOR

4 Weights 40 Kg - 1 Weight FTH 80 Kg, Contains Ref. 2-5,7-9

1шт.

2

87325015

WEIGHT,75Kg/165Lb

75KG

1шт.

3

44901190

COTTER PIN,6.3mm x 77.6mm L

1шт.

4

47056220

WEIGHT,40Kg/88Lb

40KG

4шт.

5

82028306

THREADED ROD,M16 x 2 x 385mm L

M16 x 2 x 385

1шт.

6

12163321

NUT,M16, Cl 10

M16 x 2

2шт.

7

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

2шт.

8

47132417

PIN,3.6mm OD x 64mm L

ASSY, Contains Ref. 9, 3

2шт.

9

44901192

SNAP RING,25mm ID

2шт.
