Запчасти Case IH FARMALL 65C (88.037.02) - DIA KIT - 6 REAR RINGS 32KG (88) - ACCESSORIES

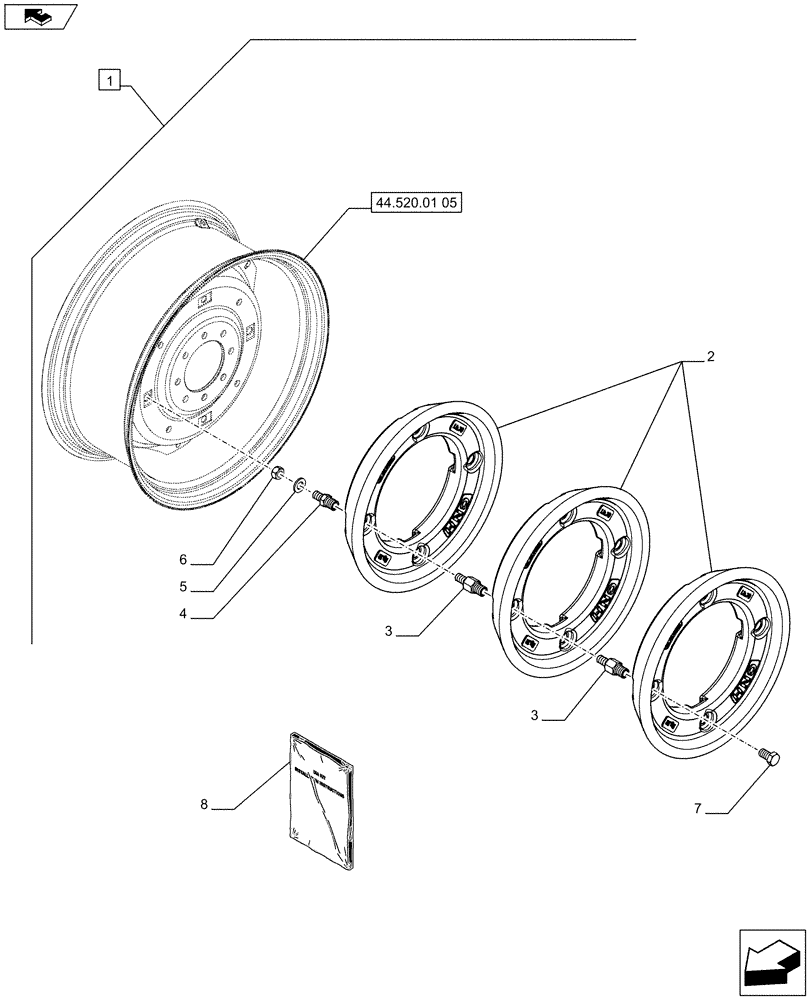

Схема запчастей Case IH FARMALL 65C - (88.037.02) - DIA KIT - 6 REAR RINGS 32KG (88) - ACCESSORIES
8
1
3
6
home
44.520.01 05
3
7
5
2
4

Артикул

Название

Примечание

Количество

1

710465250

DIA KIT, TRACTOR

6 Rear Rings 32KG, Contains Ref. 2-8

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47131265

WHEEL DISC,330mm Dia, 4 Bolts, CNH Dark Grey

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

16шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

8шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

6

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

8шт.

7

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

8

87742696

LITER. SERV MISCELL

1шт.

Выбрано товаров: 9
