(88.037.01) - DIA KIT - 4 REAR RINGS 50KG

Запчасти Case IH FARMALL 65C (88.037.01) - DIA KIT - 4 REAR RINGS 50KG (88) - ACCESSORIES

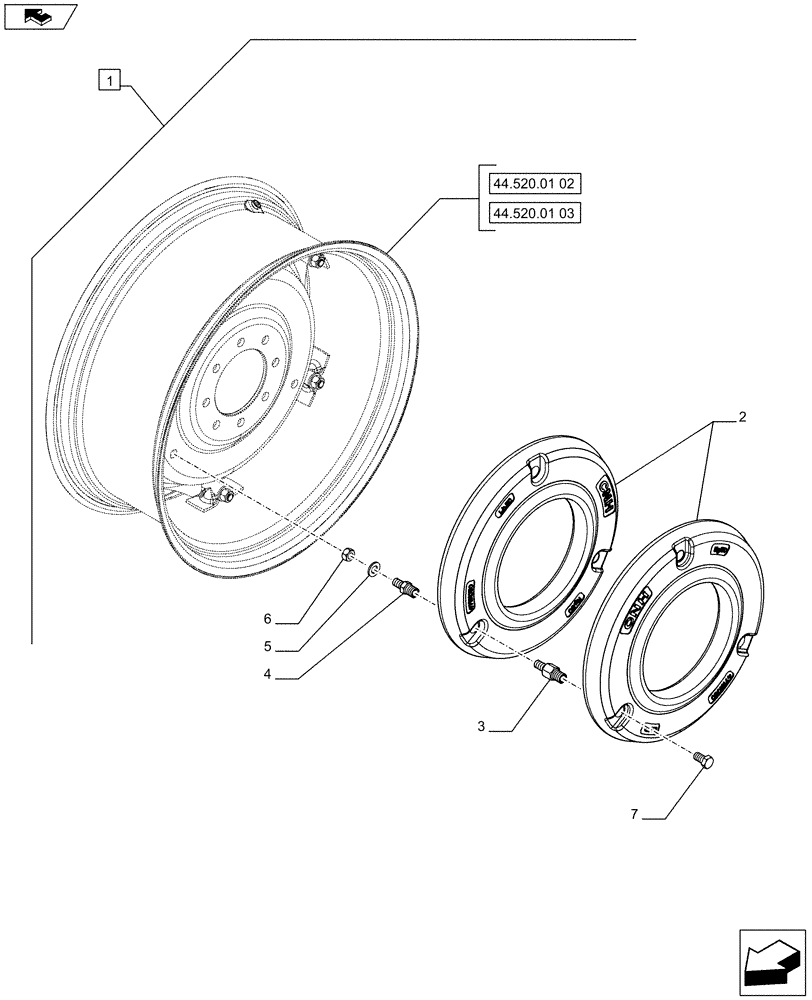

Схема запчастей Case IH FARMALL 65C - (88.037.01) - DIA KIT - 4 REAR RINGS 50KG (88) - ACCESSORIES
6
home
44.520.01 03
44.520.01 02
4
2
5
3
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710471250

DIA KIT, TRACTOR

4 Rear Rings 50KG, Contains Ref. 2-7

1шт.

2

47131052

WHEEL WEIGHT,50Kg/110Lb

4шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

6шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

6

12164124

NUT,M16 x 1.5, Cl 8

6шт.

7

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

Выбрано товаров: 7
