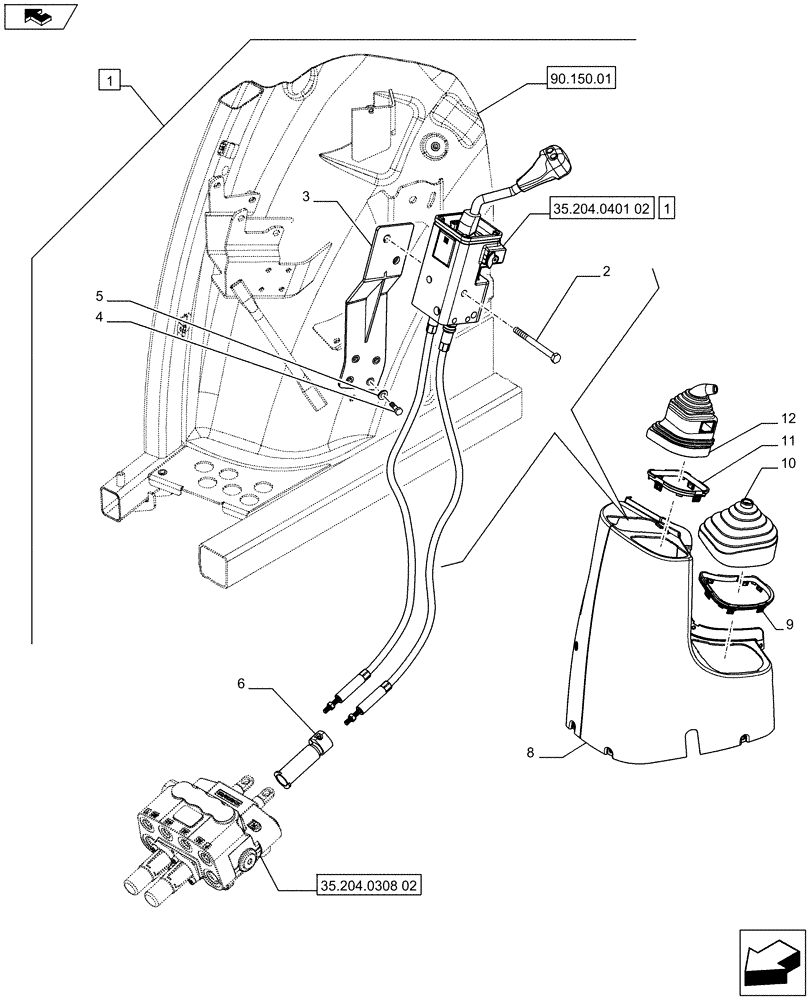

Запчасти Case IH FARMALL 65C (88.035.07[02]) - DIA KIT - 2 MID MOUNTS - JOYSTICK AND SUPPORT (88) - ACCESSORIES

1

719124260

DIA KIT, TRACTOR

2 Mid Mounts, Contains Ref. 2-7

1шт.

See Also Pag.01

1шт.

2

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

3

84294398

BRACKET

1шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

87302881

DISTRIBUTOR,14 - 20 mm ID x 95 mm L

2шт.

7

84303493

JOYSTICK

1шт.

8

84315023

TRIM

1шт.

9

84370122

COVER

1шт.

10

84370118

BOOT

1шт.

11

84370125

INSERT

1шт.

12

84370120

BOOT

1шт.
