Запчасти Case IH FARMALL 65C (88.035.07[01]) - DIA KIT - 2 MID MOUNT - VALVES AND PIPES (88) - ACCESSORIES

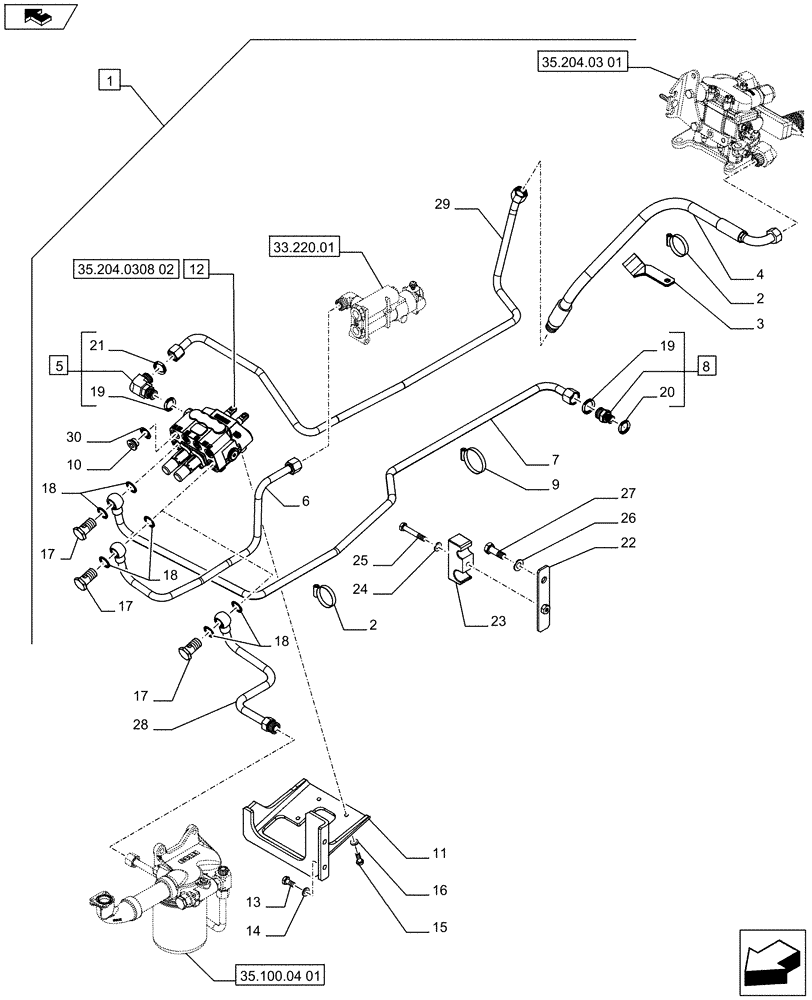

Схема запчастей Case IH FARMALL 65C - (88.035.07[01]) - DIA KIT - 2 MID MOUNT - VALVES AND PIPES (88) - ACCESSORIES
26
20
33.220.01
16
19
18
2
18
14
17
27
8
19
9
5
11
10
13
28
18
35.204.0308 02
35.100.04 01
35.204.03 01
home
22
2
21
23
7
12
17
3
1
4
24
15
17
6
29
30
25

Артикул

Название

Примечание

Количество

1

719124260

DIA KIT, TRACTOR

2 Mid Mounts, Contains Ref. 2-30

1шт.

See Also Pag. 02

1шт.

2

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

2шт.

3

84309465

BRACKET

1шт.

4

84233828

FLEXIBLE HOSE

1шт.

5

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 19, 21

1шт.

6

84233483

RIGID TUBE

1шт.

With Hydraulic Trailer Brake

1шт.

7

84372325

RIGID TUBE

1шт.

8

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Contains Ref. 19, 20

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

10

10273111

PLUG,M18 x 1.5 x 13

4шт.

11

84234973

BRACKET

1шт.

12

47132112

HYDRAULIC VALVE

1шт.

13

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

16

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

17

5112588

BANJO BOLT,M22 x 1.5 x 40mm

2шт.

18

87667808

SEAL,22mm ID x 30mm OD x 1.5mm Thk

4шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

84409985

BRACKET

1шт.

23

84372324

FIXING PLATE

1шт.

24

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

25

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

26

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

27

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

28

84372327

RIGID TUBE

1шт.

Less Hydraulic Trailer Brake

1шт.

29

84234747

RIGID TUBE

1шт.

30

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

Выбрано товаров: 33
