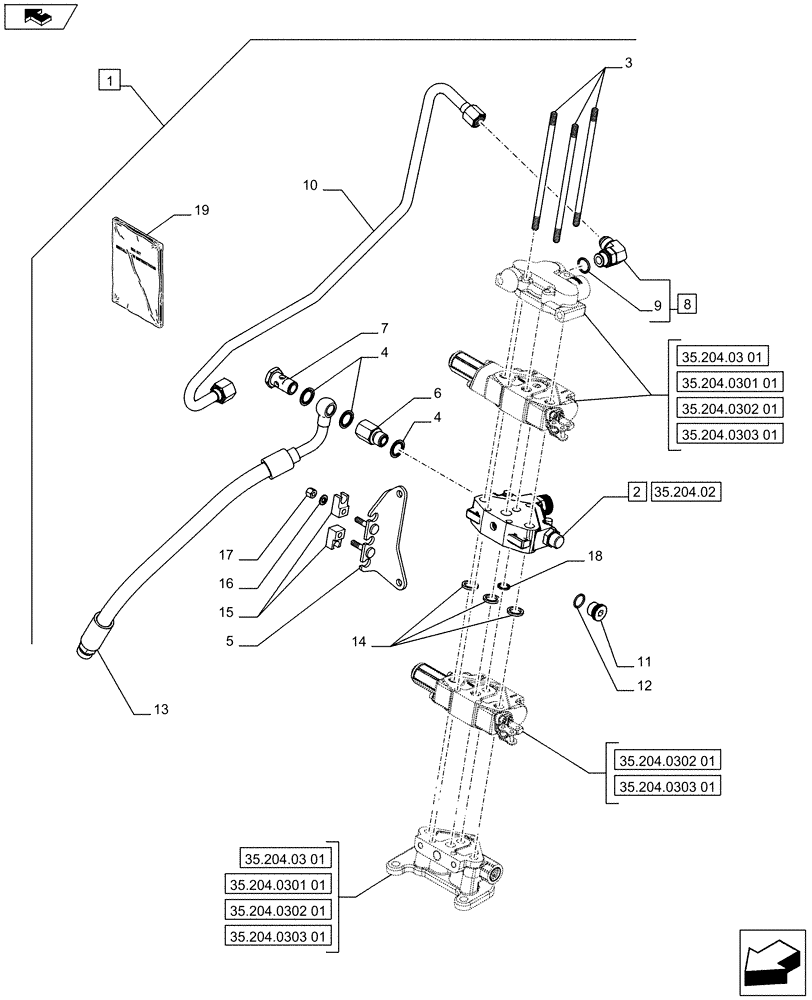

Запчасти Case IH FARMALL 65C (88.035.06[01]) - DIA KIT - FLOW CONTROL FOR 1 OR 2 REMOTES - SUPPORTS AND PIPES - ISO (88) - ACCESSORIES

1

719405250

DIA KIT, TRACTOR

Flow Control for 1 or 2 Remotes, Contains Ref. 2-19

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87397107

CONTROL VALVE

1шт.

3

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

3шт.

5

84282287

BRACKET

1шт.

6

5188525

REDUCER,M22 x 1.5 x M22 x 1.5

M22 x 1.5

1шт.

7

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY, Contains Ref. 9

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

10

84370906

RIGID TUBE

Delivery Lift

1шт.

11

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

1шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

84404460

FLEXIBLE HOSE

1шт.

14

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING

3шт.

15

47132225

BRACKET

2шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

18

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

1шт.

19

84470379

INSTRUCTION

1шт.
