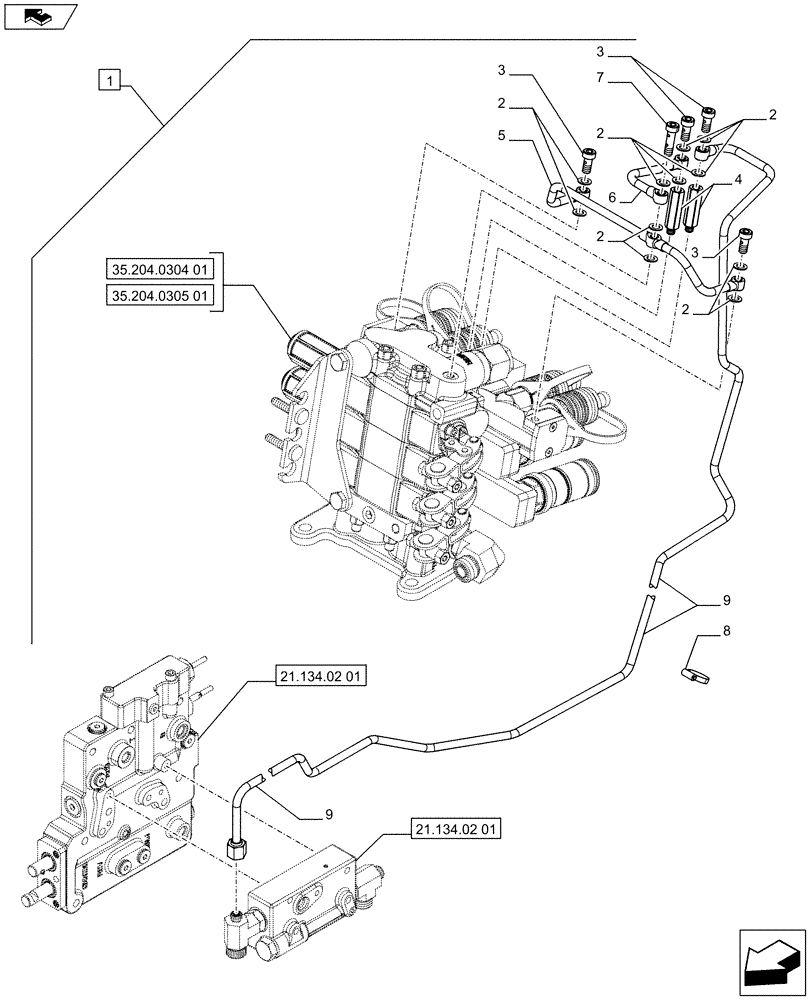

Запчасти Case IH FARMALL 65C (88.035.05[04]) - DIA KIT - 1 DIVERTER FOR 3 REMOTES - PIPES - ISO (88) - ACCESSORIES

1

710312260

DIA KIT, TRACTOR

Diverter for 3 Remotes, Contains Ref.2-9

1шт.

See Also Pag.01, 02, 03, 05

1шт.

2

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

13шт.

3

5175070

BANJO BOLT,M8 x 1.25 x 24mm

4шт.

4

5179506

PROP,M8 x 1.25

2шт.

5

5175115

RIGID TUBE

Pressure

1шт.

6

5179545

RIGID TUBE

1шт.

7

5179757

BANJO BOLT

1шт.

8

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

9

84373320

RIGID TUBE

Diverter

1шт.
