Запчасти Case IH FARMALL 65C (88.035.05[02]) - DIA KIT - 1 DIVERTER FOR 3 REMOTES - CONTROL VALVES AND QUICK COUPLERS - ISO (88) - ACCESSORIES

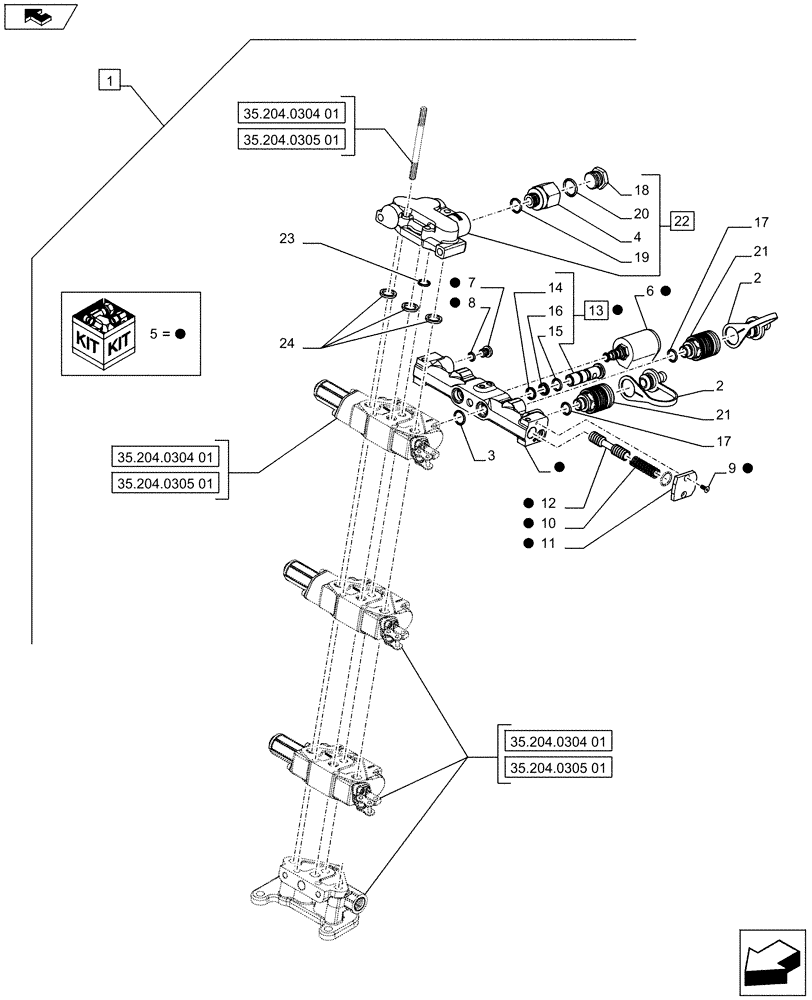

Схема запчастей Case IH FARMALL 65C - (88.035.05[02]) - DIA KIT - 1 DIVERTER FOR 3 REMOTES - CONTROL VALVES AND QUICK COUPLERS - ISO (88) - ACCESSORIES
13
18
10
1
7
1
14
1
5
2
20
1
24
1
21
17
17
1
1
16
15
23
1
8
2
19
12
11
18
3
9
1
1
6
35.204.0305 01
35.204.0304 01
35.204.0305 01
35.204.0304 01
35.204.0305 01
35.204.0304 01
home
22
4
21

Артикул

Название

Примечание

Количество

1

710312260

DIA KIT, TRACTOR

Diverter for 3 Remotes, Contains Ref.2-24

1шт.

See Also Pag.01,03,04,05

1шт.

2

5179578

PLUG,24mm, Brown

4шт.

3

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

M2,62 x 18,72

6шт.

4

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

5

47131019

BODY

ASSY, Contains Ref. 6-13

1шт.

6

5176119

ELECTRO-VALVE,3W - 2p with diode

1шт.

7

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.

8

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

9

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

11

47125558

COVER

2шт.

12

47125557

ROD,16mm OD x 73mm L

2шт.

13

47131017

BANJO BOLT,M18 x 1.5 x 67mm

ASSY, Contains Ref. 14-16

2шт.

14

47131201

GASKET KIT

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

47126244

GASKET KIT

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

18

83957506

PLUG,3/4"

1шт.

19

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

4шт.

22

87396829

CONTROL VALVE

ASSY, Contains Ref. 4,18,19,20

1шт.

23

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

1шт.

24

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

3шт.

Выбрано товаров: 25
