(88.035.05[01]) - DIA KIT - DIVERTER FOR 3 REMOTE - OUTER CONTROL LEVERS - ISO

Запчасти Case IH FARMALL 65C (88.035.05[01]) - DIA KIT - DIVERTER FOR 3 REMOTE - OUTER CONTROL LEVERS - ISO (88) - ACCESSORIES

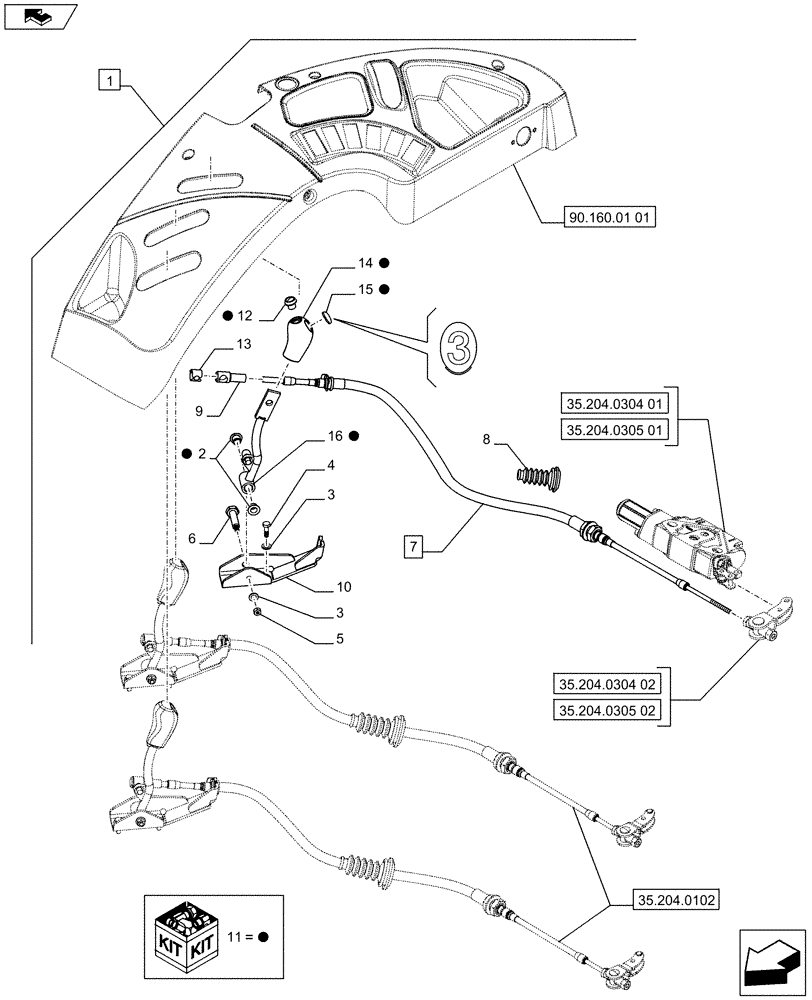

Схема запчастей Case IH FARMALL 65C - (88.035.05[01]) - DIA KIT - DIVERTER FOR 3 REMOTE - OUTER CONTROL LEVERS - ISO (88) - ACCESSORIES
18
3
4
11
16
8
2
18
13
18
home
35.204.0305 02
35.204.0305 01
35.204.0304 01
90.160.01 01
35.204.0304 02
18
3
1
35.204.0102
18
14
9
15
5
10
12
18
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710312260

DIA KIT, TRACTOR

Diverter for 3 Remotes, Contains Ref.2-16

1шт.

See Also Pag.02-05

1шт.

2

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

3шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

5

12575411

LOCK NUT,M6 x 1, Cl 8

1шт.

6

84302881

PIN,16.2mm OD x 49.5mm L

1шт.

7

84296420

FLEXIBLE CONTROL

ASSY, Contains Ref. 8, 9

1шт.

8

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

9

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

3шт.

10

84295559

SUPPORT

1шт.

11

84352671

LEVER

ASSY, Contains Ref. 2, 12,14,15,16

1шт.

12

84123781

SWITCH

1шт.

13

10125574

CLAMP,13mm

1шт.

14

84121634

KNOB

1шт.

15

47057201

IDEOGRAM

Ginger

1шт.

16

84324151

LEVER

1шт.
