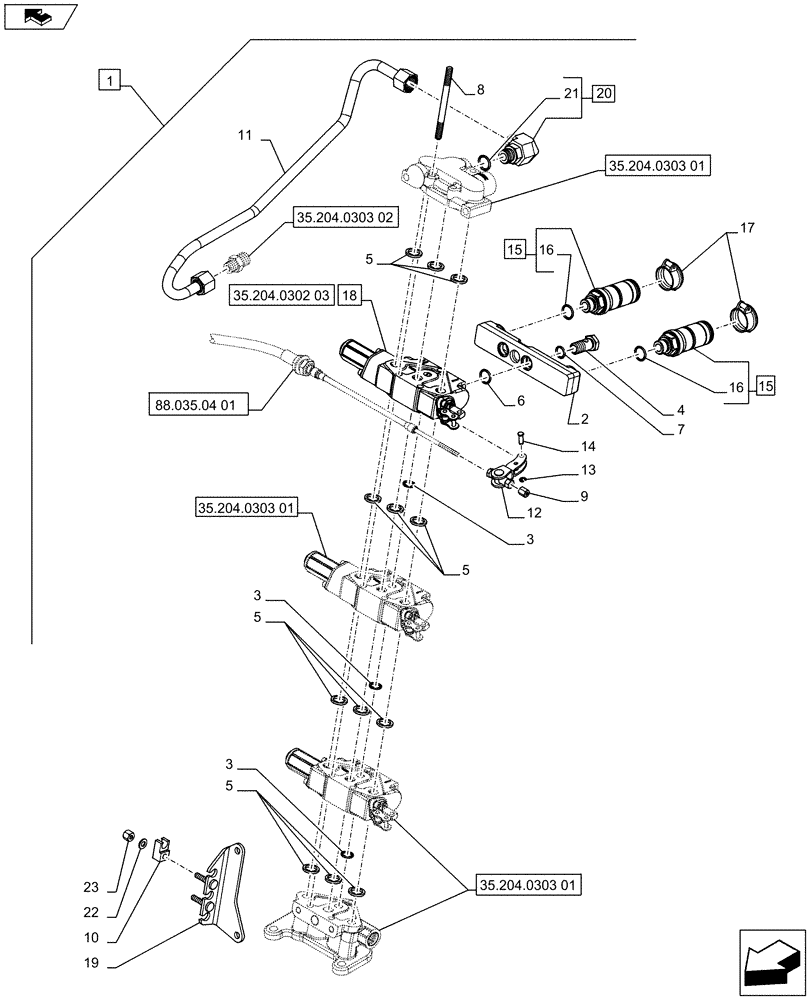

Запчасти Case IH FARMALL 65C (88.035.04[02]) - DIA KIT - 3RD REAR CONTROL VALVES WITH 2 COPLERS DE LUXE - CONTROL VALVES AND QUICK COUPLERS (88) - ACCESSORIES

1

719195260

DIA KIT, TRACTOR

3rd Rear Control Valves with 2 Couplers De Luxe

1шт.

See Also Pag.01

1шт.

2

5185533

HYD CONNECTOR

1шт.

3

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

4шт.

4

5168481

BANJO BOLT,M18 x 1.5 x 38mm

1шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING

12шт.

6

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

9

82012528

NUT,Hex, M6 x 1

1шт.

10

47132225

BRACKET

1шт.

11

84370906

RIGID TUBE

1шт.

12

84282370

CONTROL LEVER

1шт.

13

11087776

CIRCLIP,Ext., M6, BLO

1шт.

14

5172456

PIN,6mm OD x 20mm L

1шт.

15

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

2шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

47123643

CAP

Black

2шт.

17

2128

BOLT

Brown

2шт.

18

84285895

DISTRIBUTOR

1шт.

19

84282287

BRACKET

1шт.

20

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY Contains Ref.21

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

22

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

23

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

M8

1шт.
