(88.035.04[01]) - DIA KIT - 3RD REAR CONTROL VALVES WITH 2 COPLERS DE LUXE - CONTROL VALVES AND QUICK COUPLERS

Запчасти Case IH FARMALL 65C (88.035.04[01]) - DIA KIT - 3RD REAR CONTROL VALVES WITH 2 COPLERS DE LUXE - CONTROL VALVES AND QUICK COUPLERS (88) - ACCESSORIES

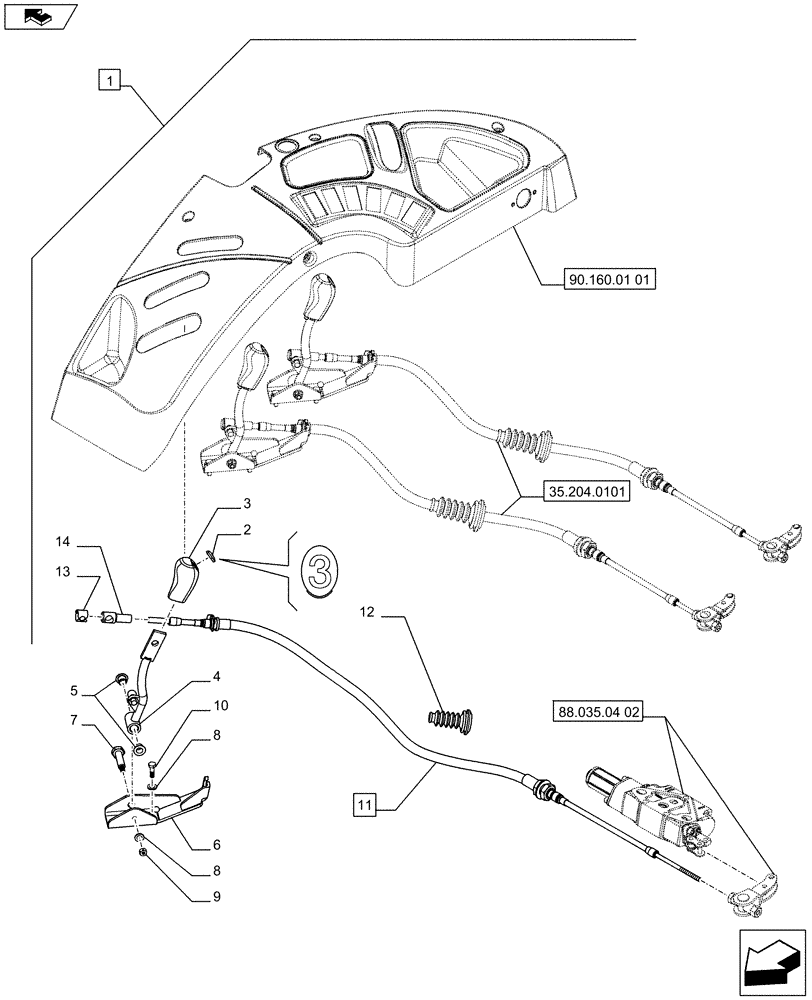

Схема запчастей Case IH FARMALL 65C - (88.035.04[01]) - DIA KIT - 3RD REAR CONTROL VALVES WITH 2 COPLERS DE LUXE - CONTROL VALVES AND QUICK COUPLERS (88) - ACCESSORIES
13
7
9
1
14
8
6
11
35.204.0101
10
8
home
90.160.01 01
88.035.04 02
12
3
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719195260

DIA KIT, TRACTOR

3rd Rear Control Valves with 2 Couplers De Luxe Contains Ref. 2- 23

1шт.

See Also Pag.02

1шт.

2

47057201

IDEOGRAM

1шт.

3

47056482

KNOB

4шт.

4

84324148

LEVER

1шт.

5

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

6

84295559

SUPPORT

1шт.

7

84302881

PIN,16.2mm OD x 49.5mm L

1шт.

8

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

3шт.

9

12575411

LOCK NUT,M6 x 1, Cl 8

1шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

11

84296420

FLEXIBLE CONTROL

1шт.

12

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

13

10125574

CLAMP,13mm

1шт.

14

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

3шт.
