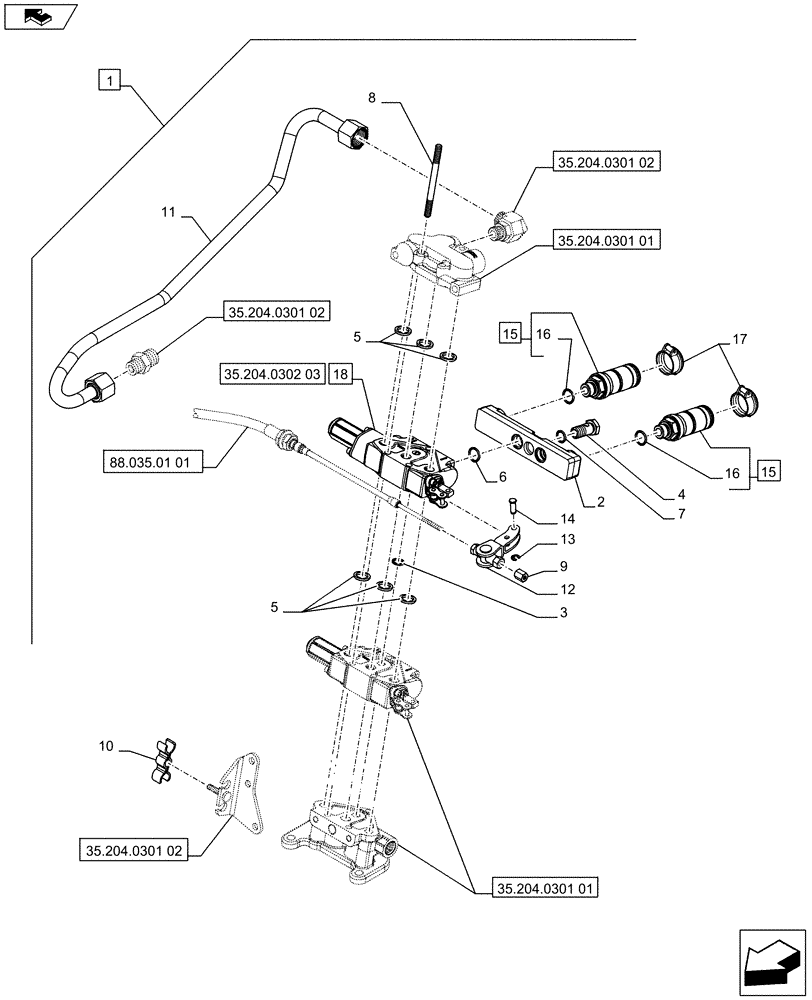

Запчасти Case IH FARMALL 65C (88.035.03[02]) - DIA KIT - 2ND REAR CONTROL VALVES WITH 2 COUPLERS DE LUXE - CONTROL VALVES AND QUICK COUPLERS (88) - ACCESSORIES

1

719108260

DIA KIT, TRACTOR

2nd Rear Control Valves with 2 Couplers De Luxe, Contains Ref.2-18

1шт.

See Also Pag.01

1шт.

2

5185533

HYD CONNECTOR

1шт.

3

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

3шт.

4

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

9шт.

6

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

M2,62 x 18,72

2шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

9

82012528

NUT,Hex, M6 x 1

1шт.

10

5191951

CLAMP,3 Hoses

1шт.

11

84362545

RIGID TUBE

Delivery Lift

1шт.

12

84282370

CONTROL LEVER

1шт.

13

11087776

CIRCLIP,Ext., M6, BLO

M6

1шт.

14

5172456

PIN,6mm OD x 20mm L

1шт.

15

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Contains Ref. 28

2шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

47123643

CAP

Black

2шт.

17

47132127

DUST CAP,Blue

Blue

2шт.

18

84285895

DISTRIBUTOR

1шт.
