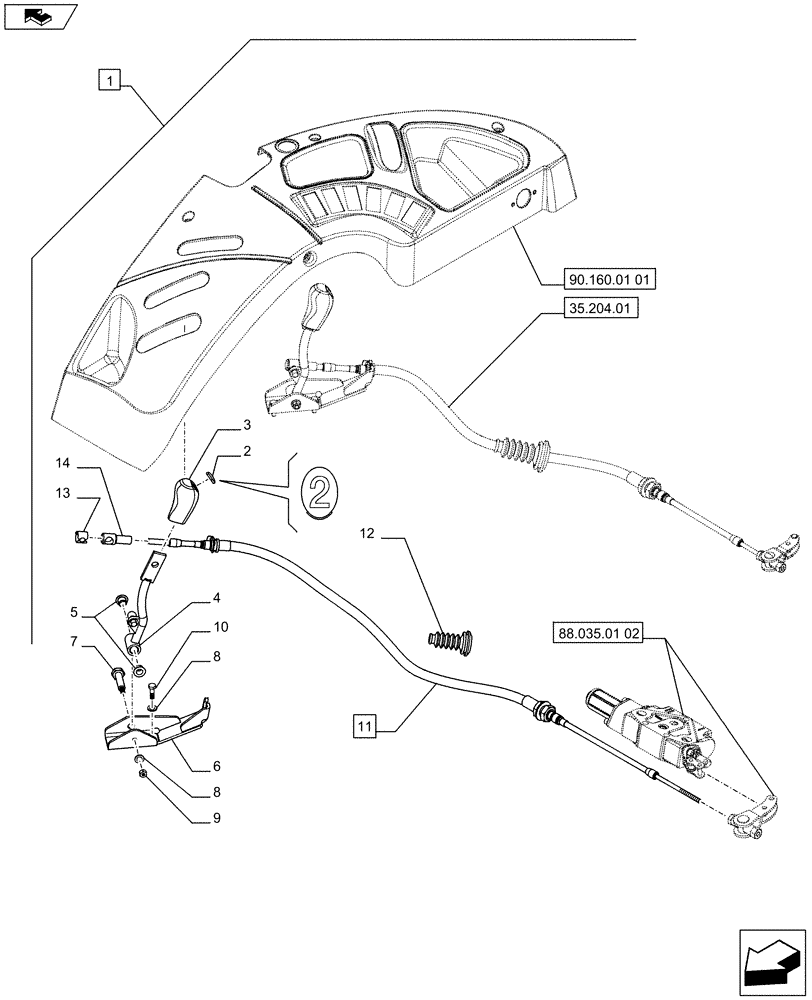

Запчасти Case IH FARMALL 65C (88.035.01[01]) - DIA KIT - 2ND REAR CONTROL VALVE WITH 2 COUPLERS - OUTER CONTROL LEVER - ISO (88) - ACCESSORIES

1

710310260

DIA KIT, TRACTOR

2ND Rear Control Valves with 2 Couplers - ISO, Contains Ref. 2-14

1шт.

See Also Pag.02

1шт.

2

47057200

IDEOGRAM

Green

1шт.

3

47056482

KNOB

1шт.

4

84324148

LEVER

1шт.

5

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

6

84295559

SUPPORT

1шт.

7

84302881

PIN,16.2mm OD x 49.5mm L

1шт.

8

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

3шт.

9

12575411

LOCK NUT,M6 x 1, Cl 8

1шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

11

84296420

FLEXIBLE CONTROL

ASSY, Contains Ref. 12, 14

1шт.

12

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

13

10125574

CLAMP,13mm

1шт.

14

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

3шт.
