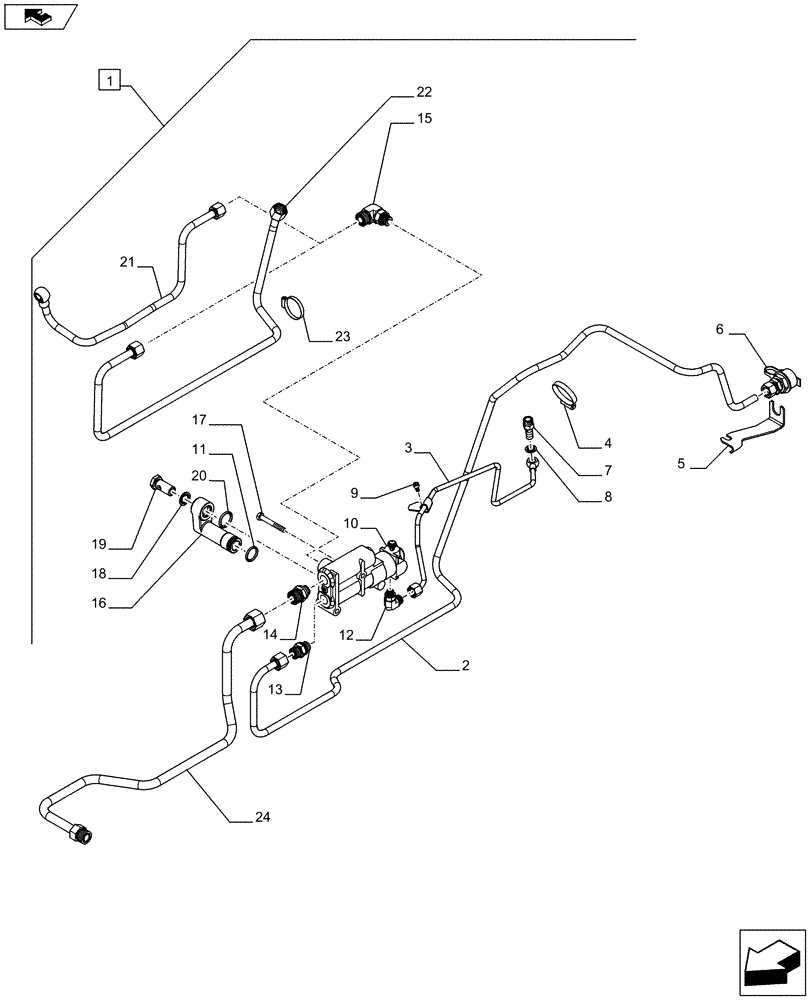

Запчасти Case IH FARMALL 65C (88.033.01) - DIA KIT - HYDRAULIC TRAILER BRAKE INTERNATIONAL - PIPES AND BRAKE VALVE - ISO (88) - ACCESSORIES

1

710370251

DIA KIT, TRACTOR

Hydraulic Trailer Brake International - ISO, Contains Ref.2-24

1шт.

2

84372334

RIGID TUBE

1шт.

3

84390096

RIGID TUBE

1шт.

4

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

2шт.

5

84390095

BRACKET

1шт.

6

44015354

QUICK MALE COUPLING

1шт.

7

5113983

BANJO BOLT

1шт.

8

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

9

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

10

47132616

HYDRAULIC VALVE

1шт.

11

70935121

O-RING,-213, Cl 7, .921" ID x .139" Thk

1шт.

12

84315322

HYD CONNECTOR

1шт.

13

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

1шт.

14

84315314

HYD CONNECTOR

1шт.

15

84175924

FITTING

1шт.

16

5186148

HYD CONNECTOR,M20 x 1.5 x 99.5mm L

1шт.

17

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

18

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

19

5168481

BANJO BOLT,M18 x 1.5 x 38mm

1шт.

20

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

1шт.

21

84233483

RIGID TUBE

1шт.

With 2 Mid Mount Valve

1шт.

22

84413392

RIGID TUBE

1шт.

23

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50 x 70

1шт.

24

84372331

RIGID TUBE

1шт.
