Запчасти Case IH FARMALL 65C (88.010.01) - DIA KIT - EXHAUST HORZONTAL - GUARDS SHIELD (88) - ACCESSORIES

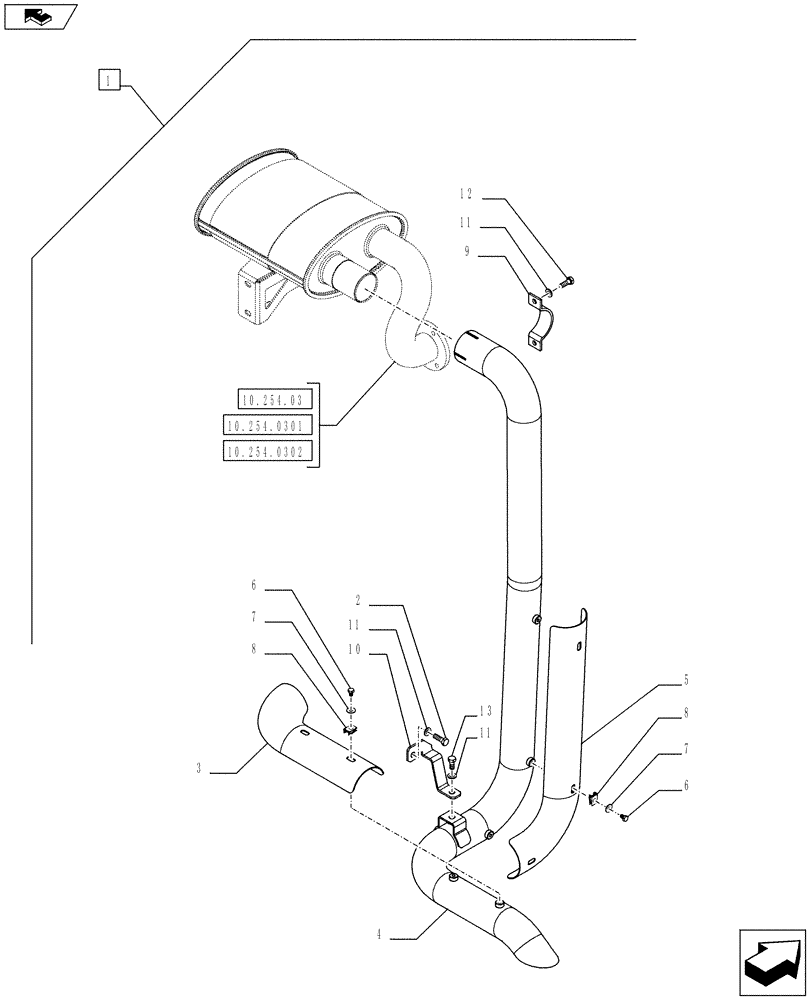

Схема запчастей Case IH FARMALL 65C - (88.010.01) - DIA KIT - EXHAUST HORZONTAL - GUARDS SHIELD (88) - ACCESSORIES
3
10
7
7
8
1
5
home
9
1
6
12
1
6
1
1
8
1
13
1
10.254.03
10.254.0302
10.254.0301
4
2

Артикул

Название

Примечание

Количество

1

719150250

DIA KIT, TRACTOR

Exhaust Horizontal - Guard Shield, Contains Ref. 2, 9-14

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

84299522

HEAT SHIELD

1шт.

4

84265837

EXHAUST SYSTEM PIPE

1шт.

5

84255888

HEAT SHIELD

1шт.

6

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

5шт.

7

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

5шт.

8

87624278

SPRING CLIP

5шт.

9

47128424

COLLAR

1шт.

10

84371456

BRACKET

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

12

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

13

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 13
