Запчасти Case IH FARMALL 65C (82.100.0101[02]) - FRONT LOADER (SELF LEVELLING) - BREAKDOWN - LOADER ARM LEVER - NAR (VAR.334489-339489) (82) - FRONT LOADER & BUCKET

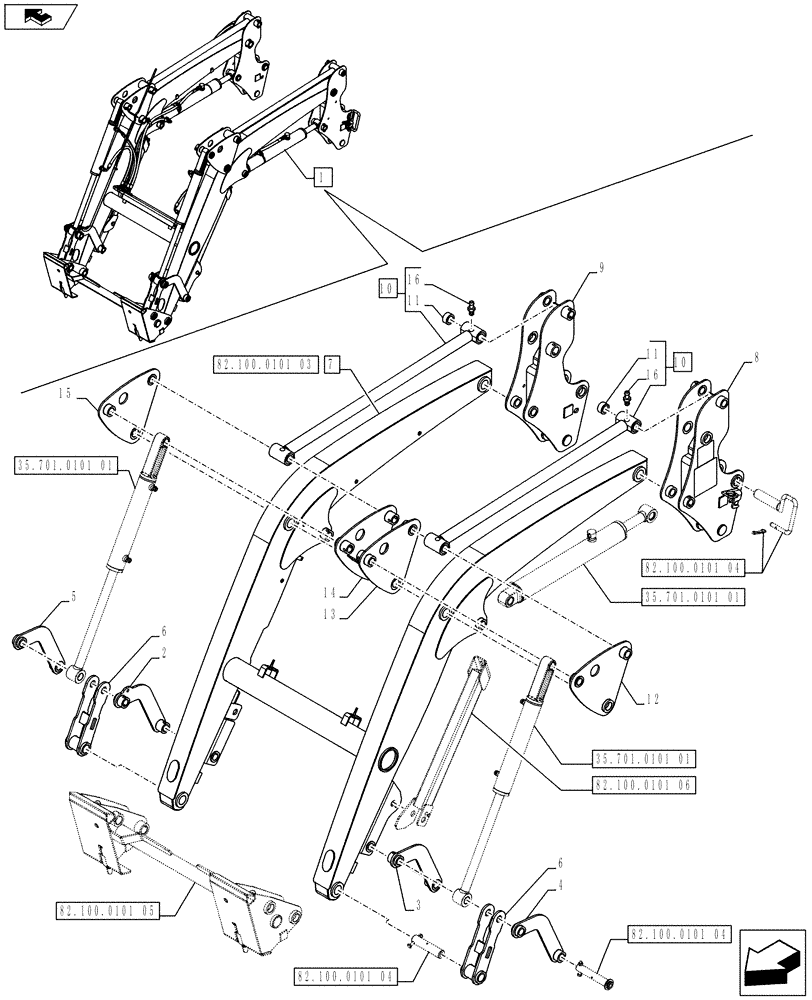

Схема запчастей Case IH FARMALL 65C - (82.100.0101[02]) - FRONT LOADER (SELF LEVELLING) - BREAKDOWN - LOADER ARM LEVER - NAR (VAR.334489-339489) (82) - FRONT LOADER & BUCKET
1
8
6
3
11
11
5
10
82.100.0101 04
home
35.701.0101 01
16
12
13
16
7
6
35.701.0101 01
15
35.701.0101 01
82.100.0101 05
82.100.0101 06
82.100.0101 04
10
14
82.100.0101 04
82.100.0101 03
2
4
9

Артикул

Название

Примечание

Количество

1

84321725

LOADER

ASSY, Contains Ref. 2-15

1шт.

See Breakdown in Groups 35.701.01 01 and 82.100.01 02-03-04-05-06 and 90.108.03

1шт.

2

84393710

LEVER

RH

1шт.

3

84393715

LEVER

LH

1шт.

4

84393699

LEVER

RH

1шт.

5

84393693

LEVER

LH

1шт.

6

84393748

CONNECTING LINK

2шт.

7

84421999

ARM

ASSY

1шт.

8

84393661

SUPPORT

LH

1шт.

9

84393659

SUPPORT

RH

1шт.

10

84422281

ROD

ASSY, Contains Ref. 11, 16

2шт.

11

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

4шт.

12

84393669

LEVER

LH

1шт.

13

84393677

LEVER

LH

1шт.

14

84393683

LEVER

RH

1шт.

15

84393666

LEVER

RH

1шт.

16

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1

2шт.

Выбрано товаров: 17
