(82.100.01[05]) - FRONT LOADER - BREAKDOWN - QUICK COUPLER BUCKET - NAR (VAR.333489-335489)

Запчасти Case IH FARMALL 65C (82.100.01[05]) - FRONT LOADER - BREAKDOWN - QUICK COUPLER BUCKET - NAR (VAR.333489-335489) (82) - FRONT LOADER & BUCKET

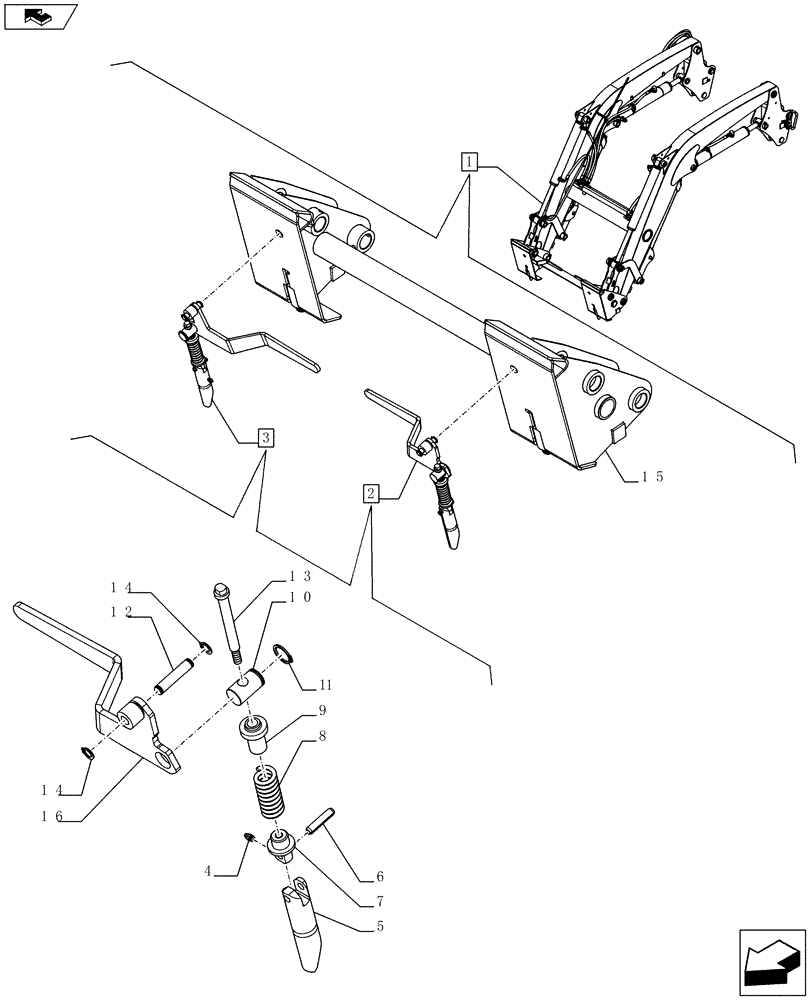

Схема запчастей Case IH FARMALL 65C - (82.100.01[05]) - FRONT LOADER - BREAKDOWN - QUICK COUPLER BUCKET - NAR (VAR.333489-335489) (82) - FRONT LOADER & BUCKET
14
home
14
9
15
8
13
1
10
4
3
12
2
1
1
5
16
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84321724

LOADER

ASSY, Contains Ref. 2, 3, 15

1шт.

See Breakdown in Groups 35.701.01 01 and 82.100.01 02-03-04-05-06 and 90.108.03

1шт.

2

NS

NOT SERVICED

LEVER ASSY RH, Contains Ref. 4-14, 16

1шт.

Order Components

1шт.

3

NS

NOT SERVICED

LEVER ASSY LH, Contains Ref. 4-14, 16

1шт.

Order Components

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

2шт.

5

86575348

PIN,31.75mm x 142mm L

2шт.

6

84406182

SPLIT PIN/SAFETY PIN

2шт.

7

84406183

GUIDE BUSHING

2шт.

8

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

9

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

10

84406184

PIN

2шт.

11

84408820

SNAP RING,M25, Ext

2шт.

12

84406185

PIN

2шт.

13

86506112

12 PT SCREW,3/8" - 16 x 5" L

2шт.

14

11066176

SNAP RING,M13, Ext

4шт.

15

84406180

QUICK-HITCH

1шт.

16

84406181

LEVER

RH

1шт.

16

84408819

LEVER

LH

1шт.
