Запчасти Case IH FARMALL 65C (55.420.02) - SAFETY SWITCH FOR POWER TAKE-OFF - L/CAB (55) - ELECTRICAL SYSTEMS

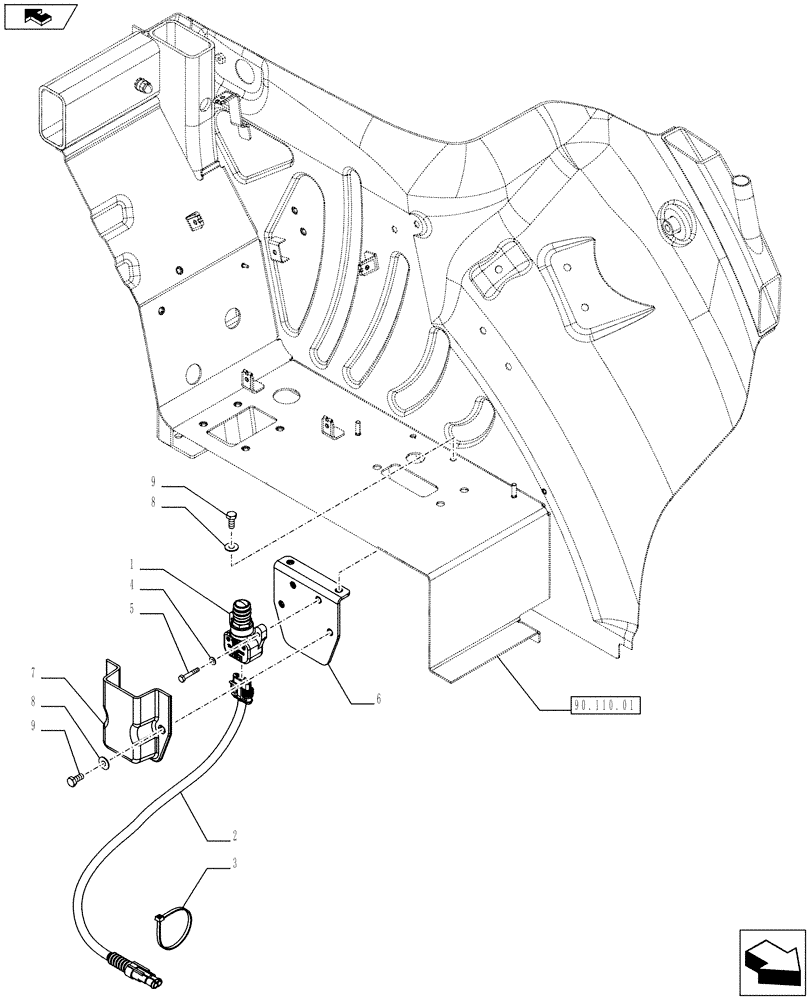

Схема запчастей Case IH FARMALL 65C - (55.420.02) - SAFETY SWITCH FOR POWER TAKE-OFF - L/CAB (55) - ELECTRICAL SYSTEMS
8
9
2
90.110.01
9
1
3
home
7
8
5
4
6

Артикул

Название

Примечание

Количество

1

87484878

LIMIT SWITCH

PTO Safety Switch

1шт.

2

84330222

CABLE EXTENSION

1шт.

3

14560187

COLLAR,199mm L

1шт.

4

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

5

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

2шт.

6

84338313

BRACKET

1шт.

7

84338314

COVER

1шт.

8

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

9

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

Выбрано товаров: 9
