(55.420.01) - SAFETY SWITCH FOR POWER TAKE-OFF - W/CAB

Запчасти Case IH FARMALL 65C (55.420.01) - SAFETY SWITCH FOR POWER TAKE-OFF - W/CAB (55) - ELECTRICAL SYSTEMS

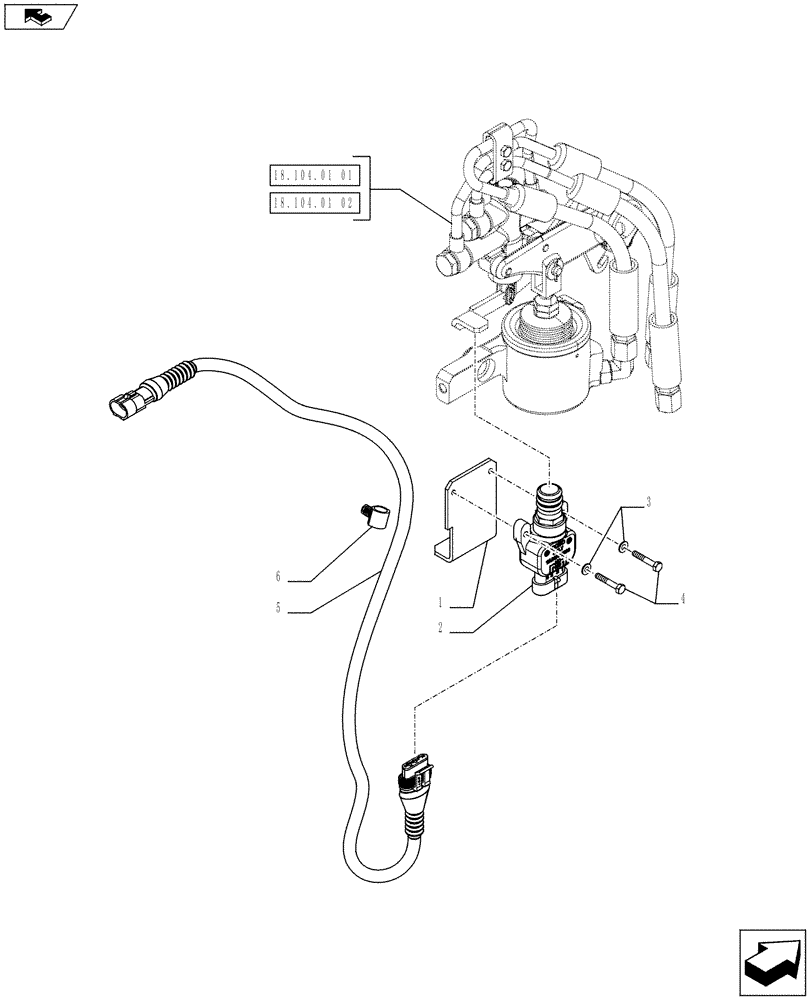

Схема запчастей Case IH FARMALL 65C - (55.420.01) - SAFETY SWITCH FOR POWER TAKE-OFF - W/CAB (55) - ELECTRICAL SYSTEMS
4
6
1
home
18.104.01 02
18.104.01 01
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87481920

BRACKET

1шт.

2

87484878

LIMIT SWITCH

PTO Safety Switch

1шт.

3

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

4

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

2шт.

5

84254936

ELECTRIC CABLE

1шт.

6

84144890

CLIP

1шт.
