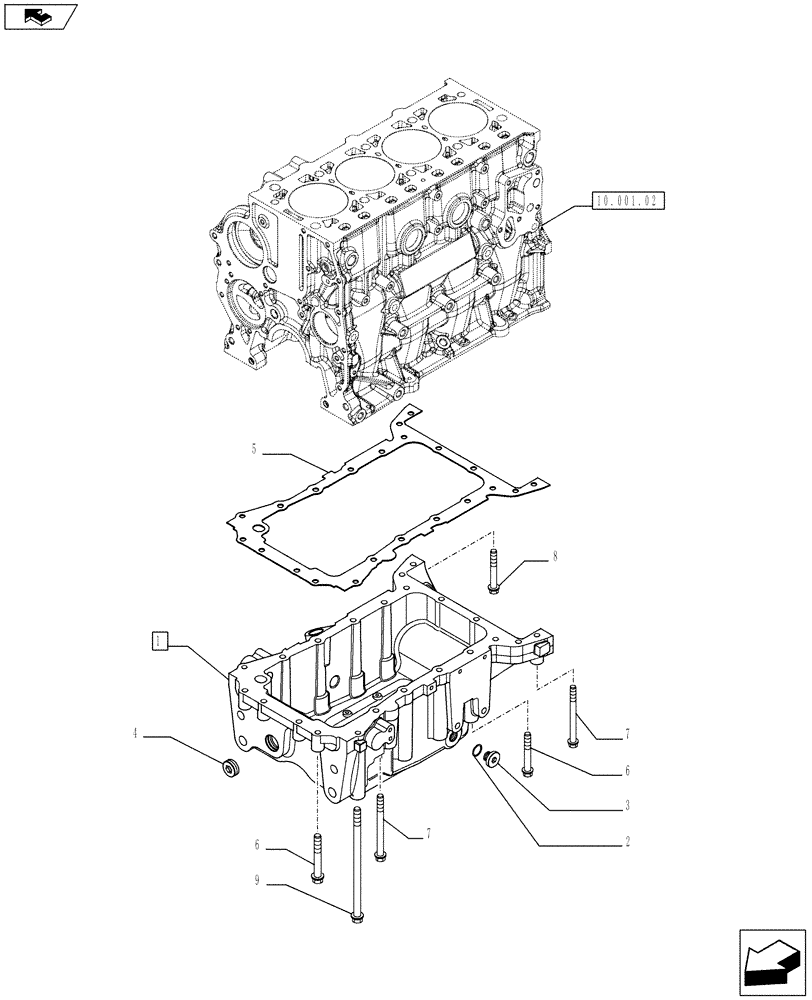

Запчасти Case IH FARMALL 65C (10.102.01) - ENGINE OIL PAN (10) - ENGINE

1

504378692

ASSY, Contains Ref. 2-4

ENGINE OIL PAN

1шт.

2

2853728

O-RING,M23.47 ID x 2.62 Thk

2шт.

3

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

4

16995111

PLUG,M35 x 1.5

M35 x 1,5

1шт.

5

504164360

GASKET

1шт.

6

16676534

BOLT,M10 x 55mm

M10 x 55

8шт.

7

2859573

SCREW

M10 x 110

4шт.

8

16676934

SCREW,M10 x 1.5 x 80mm

M10 x 1,5 x 80

2шт.

9

16599434

BOLT,Hex, M10 x 180mm, Cl 10.9

M10 x 180

2шт.

9

16599134

6шт.
