(55.404.0302) - ROAD LIGHTS - REAR - NAR - L/CAB

Запчасти Case IH FARMALL 65C (55.404.0302) - ROAD LIGHTS - REAR - NAR - L/CAB (55) - ELECTRICAL SYSTEMS

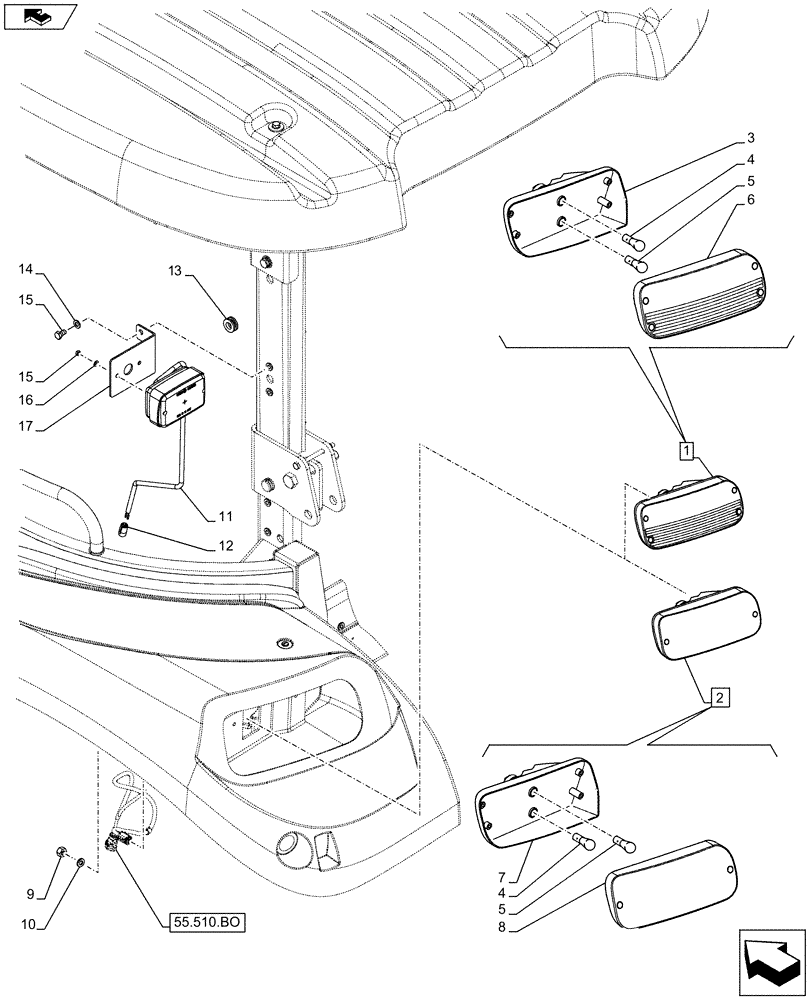

Схема запчастей Case IH FARMALL 65C - (55.404.0302) - ROAD LIGHTS - REAR - NAR - L/CAB (55) - ELECTRICAL SYSTEMS
4
4
3
14
1
7
17
8
16
12
5
15
9
2
home
1
10
6
55.510.bo
5
11
3
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87747246

LIGHT,12V, 21W, Clear/Red

RH, ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1), 6

1шт.

Alternative to PN 47656361

1шт.

1

87747247

LIGHT,12V, 21W, Clear/Red

LH, ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1), 6

1шт.

Alternative to PN 47546376

1шт.

2

47546361

POSITION LAMP,P21, PY, Halogen, 12V, 5W, 21W, Transparent

RH, ASSY, Incl 7, 4 (Qty 1), 5 (Qty 1), 8

1шт.

Alternative to PN 87747246

1шт.

2

47546376

POSITION LAMP,P21, PY, Halogen, 12V, 5W, 21W, Transparent

LH, ASSY, Incl 7, 4 (Qty 1), 5 (Qty 1), 8

1шт.

Alternative to PN 87747247

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

4

14148090

BULB,PY21W, 12V, 21W

2шт.

5

14144690

BULB,P21/5W, 12V, 21/5W

2шт.

6

87304535

LENS

RH

1шт.

6

87304536

LENS

LH

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

8

87714904

LENS

RH

1шт.

8

87714903

LENS

LH

1шт.

9

15896211

NUT,M6, Cl 8

1шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

11

47133203

FRONT LAMP,Halogen, 12V, 21W, Amber Lens

LH, Turn/SMV lamp

1шт.

11

47133204

FRONT LAMP,12V, 21W, Amber

RH, Turn/SMV lamp

1шт.

12

47135267

ELEC CONNECTOR,Female, 4 Cavities

2шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

14

16043214

BOLT,Hex, M8 x 1.25 x 16mm, Cl 5.8, Full Thd

4шт.

15

15896414

NUT,M5, Cl 8

4шт.

16

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

4шт.

17

84311561

BRACKET

2шт.
