(55.301.03) - BATTERY, COVERS AND RELATED SUPPORTS

Запчасти Case IH FARMALL 65C (55.301.03) - BATTERY, COVERS AND RELATED SUPPORTS (55) - ELECTRICAL SYSTEMS

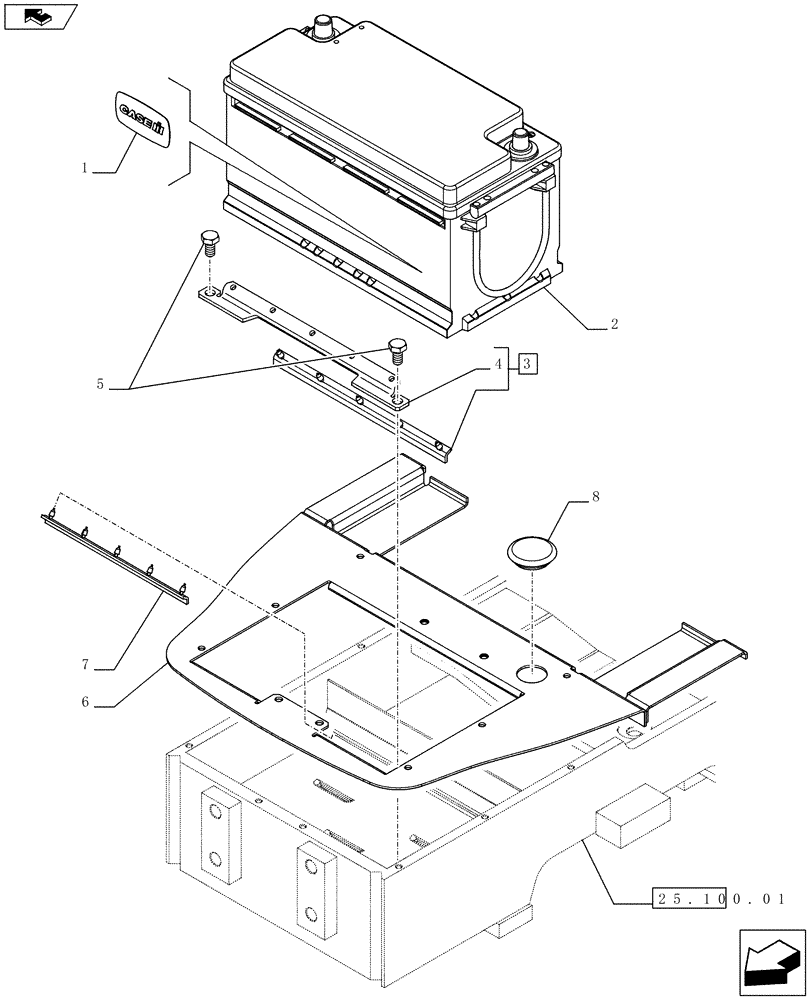

Схема запчастей Case IH FARMALL 65C - (55.301.03) - BATTERY, COVERS AND RELATED SUPPORTS (55) - ELECTRICAL SYSTEMS
7
4
25.100.01
8
1
5
3
home
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87679098

DECAL,37mm x 70mm

1шт.

2

5199959

WET BATTERY

12V 100Ah 800Cca

1шт.

STD Equipment for W/CAB Models Only

1шт.

With 100Ah Battery, VAR.330740 (Commercial Feature 743585)

1шт.

2

47130365

WET BATTERY

12V 88Ah 730Cca, EMEA Market

1шт.

L/CAB Models Only

1шт.

2

B49850MFW

WET BATTERY

US Market

1шт.

L/CAB Models Only

1шт.

2

CBCM49MFW

WET BATTERY

CANADA Market

1шт.

L/CAB Models Only

1шт.

3

5174462

CROSSRAIL

ASSY, Contains Ref. 4

1шт.

4

5174457

PAD

1шт.

5

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

84368760

PLATE

1шт.

7

5174457

PAD

1шт.

8

14508087

PLUG,40mm ID

1шт.
