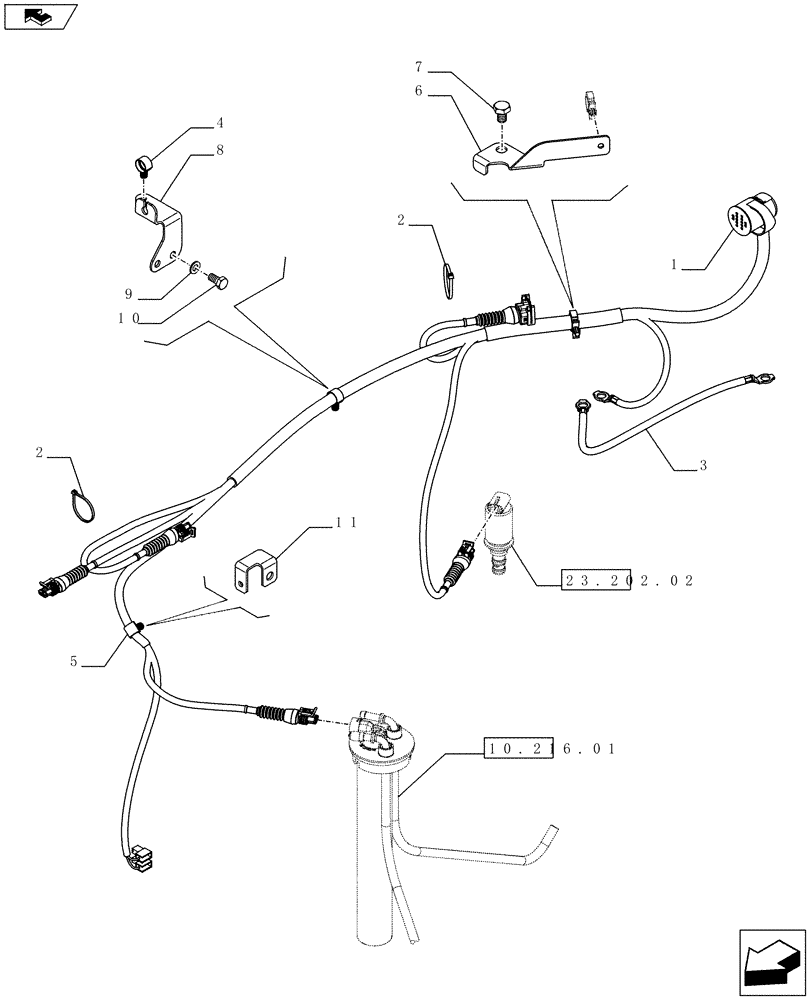

Запчасти Case IH FARMALL 65C (55.100.1101) - TRANSMISSION HARNESS - ISO (55) - ELECTRICAL SYSTEMS

1

84230585

WIRE HARNESS

ASSY, Contains Ref. 4, 5

1шт.

2

14560187

COLLAR,199mm L

2шт.

3

84249654

ELECTRIC CABLE

1шт.

4

84161523

WIRE CLAMP,12.07mm ID

1шт.

5

84144890

CLIP

1шт.

6

84273785

BRACKET

1шт.

7

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

8

84390071

BRACKET

1шт.

9

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

10

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

11

84273786

BRACKET

1шт.

Hyd. GBC (Power Shuttle), VAR.331069-332069 (Commercial Feature 743557)

1шт.
