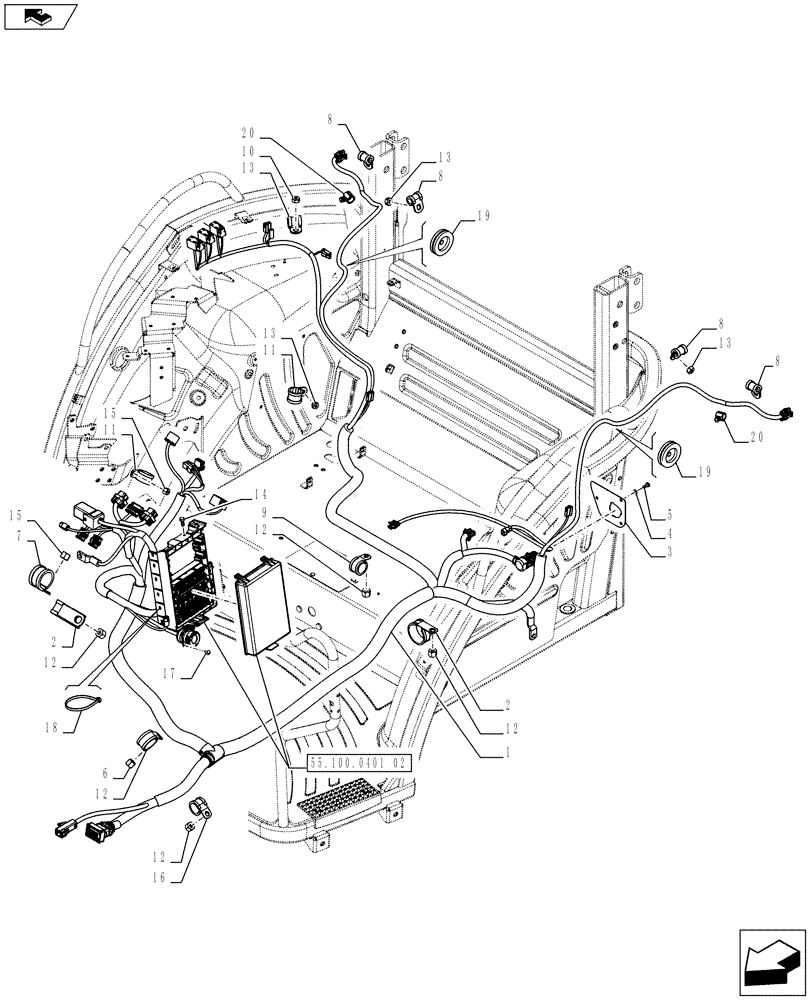

Запчасти Case IH FARMALL 65C (55.100.0401[01]) - PLATFORM CABLE AND RELATIVE PARTS - ISO - L/CAB (55) - ELECTRICAL SYSTEMS

1

84322431

WIRE HARNESS

Main Harness

1шт.

1

84322432

WIRE HARNESS

Main Harness

1шт.

Main Harness Full, VAR.335754 (Commercial Feature 743587)

1шт.

2

10448890

CLAMP,36mm, Coat, P Type

2шт.

3

84230590

RETAINING PLATE

1шт.

4

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

5

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

3шт.

6

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

7

10417901

RETAINER,26mm, Coat, 7mm Bolt Hole, P Type

1шт.

8

10418301

RETAINER COLLAR,8mm, Coat, 7mm Bolt Hole, P Type

4шт.

9

10450790

RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type

2шт.

10

10418501

BRACKET,10mm, Coat, 7mm Bolt Hole, P Type

1шт.

11

10418701

CLAMP,28mm, Coat, P Type

2шт.

12

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

6шт.

13

15896211

NUT,M6, Cl 8

6шт.

14

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

14

13274024

SCREW,Pozidriv Pan Hd, M5 x 12mm, Cl 8.8, Full Thd

1шт.

15

12574211

NUT,M6 x 1, Cl 8

2шт.

16

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

17

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

2шт.

18

14560187

COLLAR,199mm L

3шт.

19

10396980

INSULATING RING

2шт.

20

84144890

CLIP

2шт.
