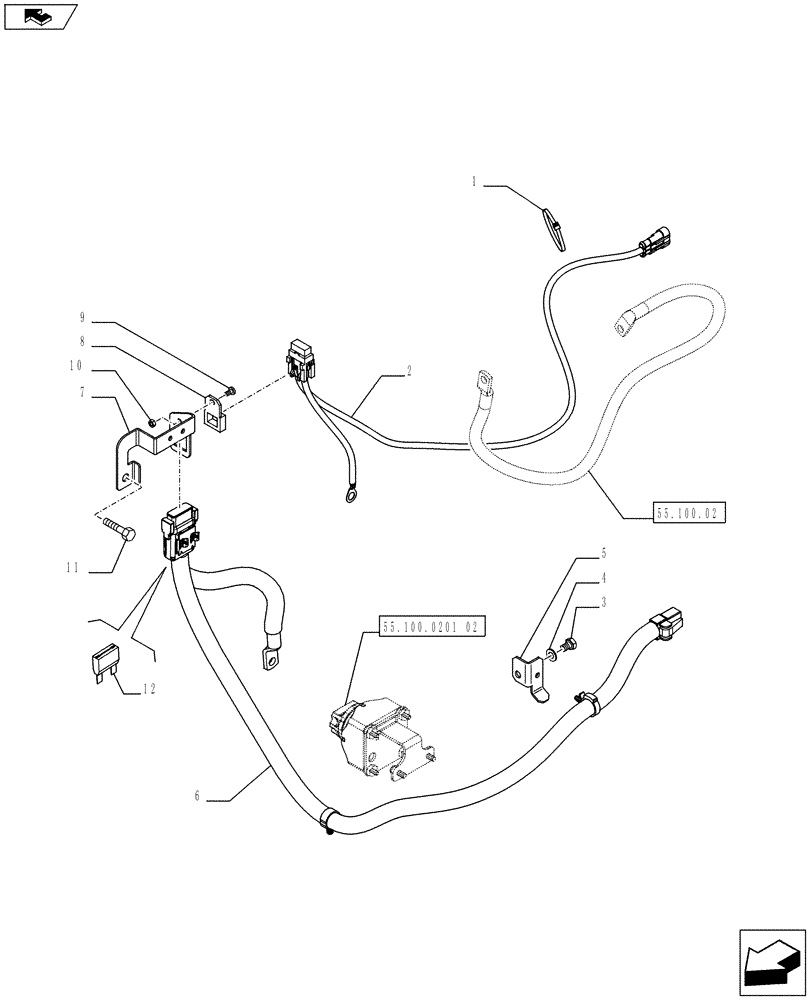

Запчасти Case IH FARMALL 65C (55.100.0201[01]) - MECHANICAL BATTERY ISOLATOR - ISO (VAR.330207) (55) - ELECTRICAL SYSTEMS

1

14560187

COLLAR,199mm L

1шт.

2

84294886

ELECTRIC CABLE

1шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

5

84230600

BRACKET

1шт.

6

84294813

ELECTRIC CABLE

Contains Ref. 12

1шт.

W/CAB Models Only

1шт.

6

84350460

WIRE HARNESS

Contains Ref. 12

1шт.

L/CAB Models Only

1шт.

7

84386752

BRACKET

1шт.

8

5190342

COVER PLATE

1шт.

9

13273914

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 5.8, Full Thd

1шт.

10

15896414

NUT,M5, Cl 8

1шт.

11

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

12

5173263

FUSE,50A, Maxi, Red

50 AMP

1шт.
