(50.206.0101[03]) - AIR CONDITIONING - AIR CONDITIONER - BREAKDOWN (VAR.330641)

Запчасти Case IH FARMALL 65C (50.206.0101[03]) - AIR CONDITIONING - AIR CONDITIONER - BREAKDOWN (VAR.330641) (50) - CAB CLIMATE CONTROL

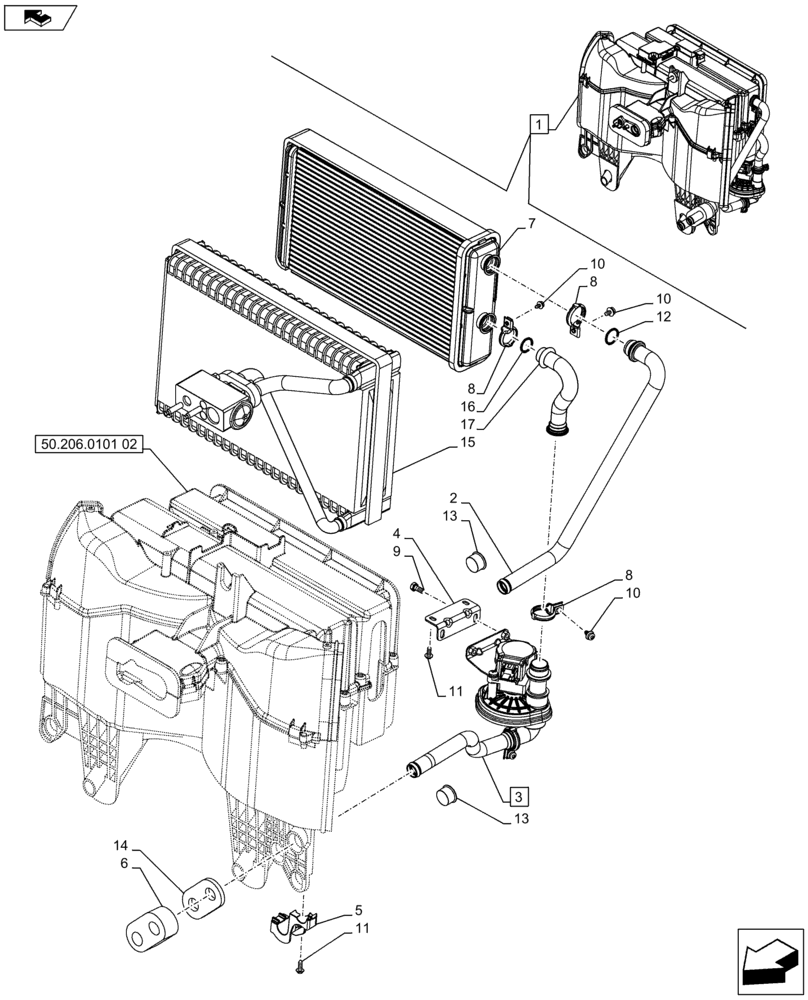

Схема запчастей Case IH FARMALL 65C - (50.206.0101[03]) - AIR CONDITIONING - AIR CONDITIONER - BREAKDOWN (VAR.330641) (50) - CAB CLIMATE CONTROL
10
3
1
2
7
home
50.206.0101 02
15
13
6
4
9
10
11
8
11
10
16
12
8
8
13
14
5
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84278022

AIR CONDITIONER

ASSY, Contains Ref. 2-15

1шт.

See Also page 02

1шт.

2

84579671

TUBE

1шт.

3

84579673

HEATER VALVE,Water Control

1шт.

4

84579676

BRACKET

1шт.

5

84579679

BRACKET

1шт.

6

84579692

SEAL

1шт.

7

84579701

RADIATOR, HEATER

1шт.

8

84579758

CLIP

3шт.

9

44006

BOLT,M5 x 10mm

2шт.

10

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

3шт.

11

84579772

BOLT,Flng, M4 x 12mm

3шт.

12

84579780

O-RING

2шт.

13

84579781

SPRING CUP

2шт.

14

84579783

SEAL

1шт.

15

84579699

EVAPORATOR

1шт.

The Expansion Valve is Not Serviced Separately and Included into P/N 84579699

1шт.

16

84602240

O-RING

1шт.

17

47839363

HOSE

1шт.
