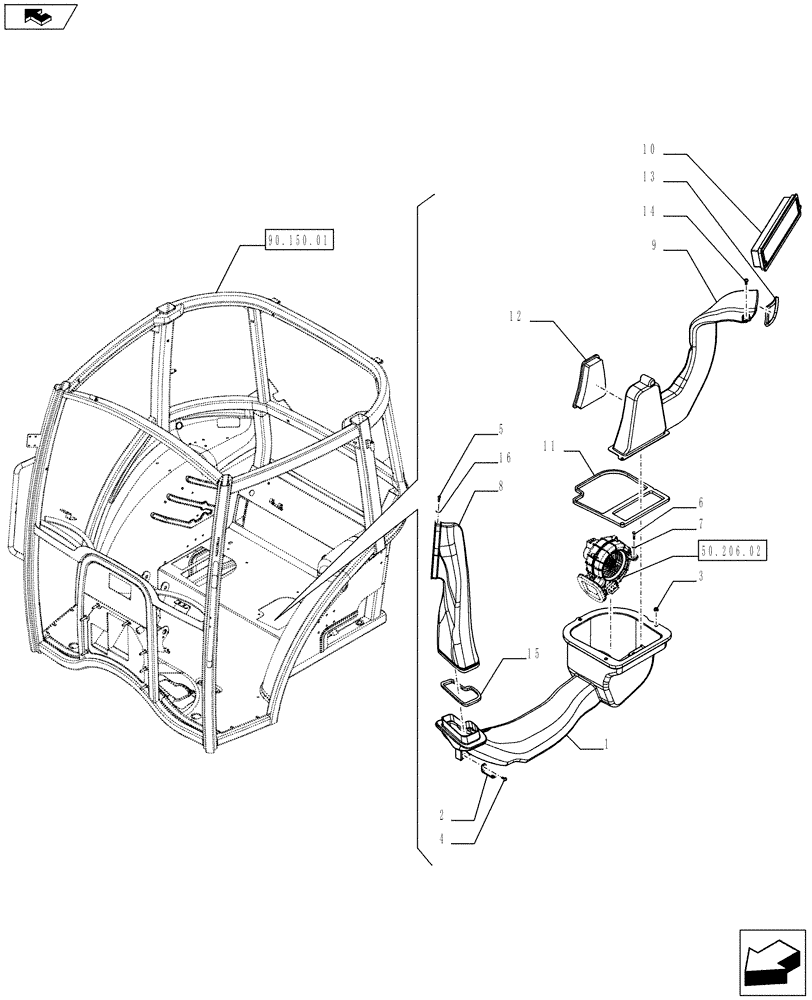

Запчасти Case IH FARMALL 65C (50.200.06[02]) - HEATING SYSTEM - FILTER AND LEFT AIR DUCTS (50) - CAB CLIMATE CONTROL

1

84221818

AIR DUCT

LH

1шт.

2

84332658

BRACKET

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

4

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

1шт.

5

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

1шт.

6

87317695

BOLT,Hex, M6 x 30mm, Cl 10.9, Full Thd

2шт.

7

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

2шт.

8

84222342

AIR DUCT

LH

1шт.

9

84268726

AIR DUCT

LH

1шт.

10

84579424

CAB FILTER,Cab, 374mm L x 99mm W x 51mm Thk, Nonwoven

1шт.

11

84221402

GASKET

LH, Rear

1шт.

12

84577445

CAB FILTER,Cab, 207.5mm L x 149.5mm W x 28mm Thk, Paper

Recirculation

1шт.

13

84280232

RUBBER SEAL

1шт.

14

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

15

84350866

GASKET

LH, Front

1шт.

16

895-19005

WASHER,M5 x 10 x 1

1шт.
