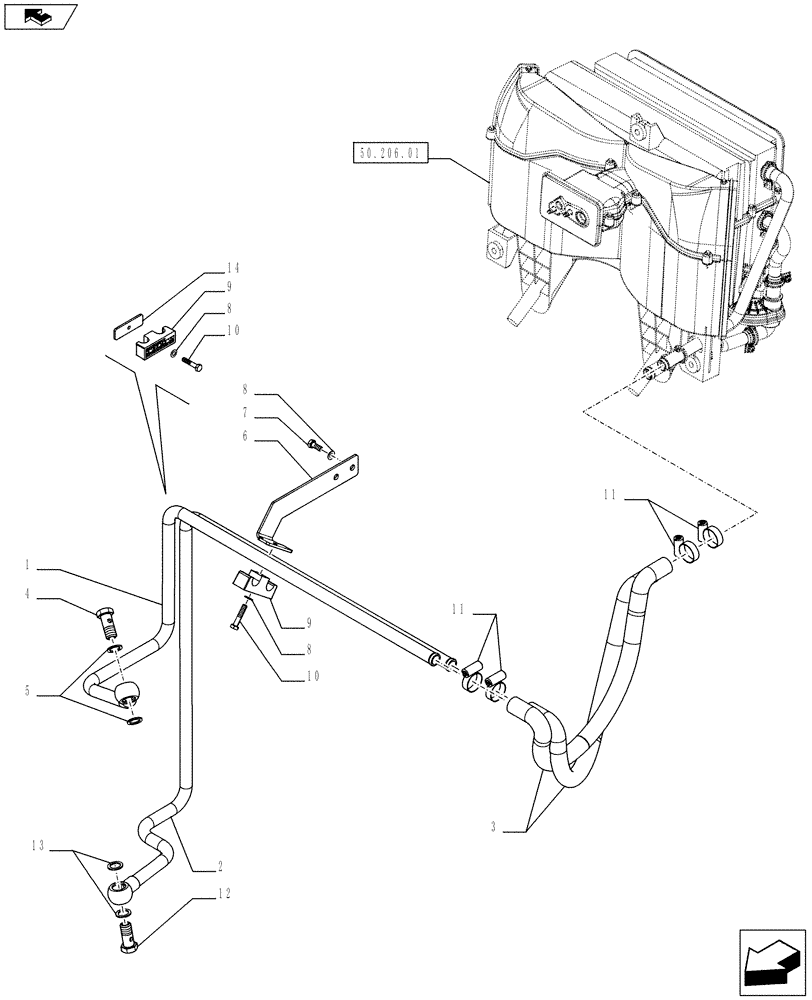

Запчасти Case IH FARMALL 65C (50.200.04) - HEATING SYSTEM - PIPES - W/CAB (50) - CAB CLIMATE CONTROL

1

84299957

TUBE

1шт.

2

84299958

TUBE

1шт.

3

84299964

HEATER HOSE

2шт.

4

87699502

BANJO BOLT,M14 x 27mm

M14

1шт.

5

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

6

84276576

BRACKET

1шт.

7

10902231

SCREW,Hex, M6 x 16mm, Cl 10.9

2шт.

8

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

9

87571442

BRACKET

2шт.

10

10902831

SCREW,Hex, M6 x 30mm, Cl 10.9

2шт.

11

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

4шт.

12

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

13

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

14

84410923

SUPPORT

1шт.
