(44.520.01[05]) - REAR WHEELS

Запчасти Case IH FARMALL 65C (44.520.01[05]) - REAR WHEELS (44) - WHEELS

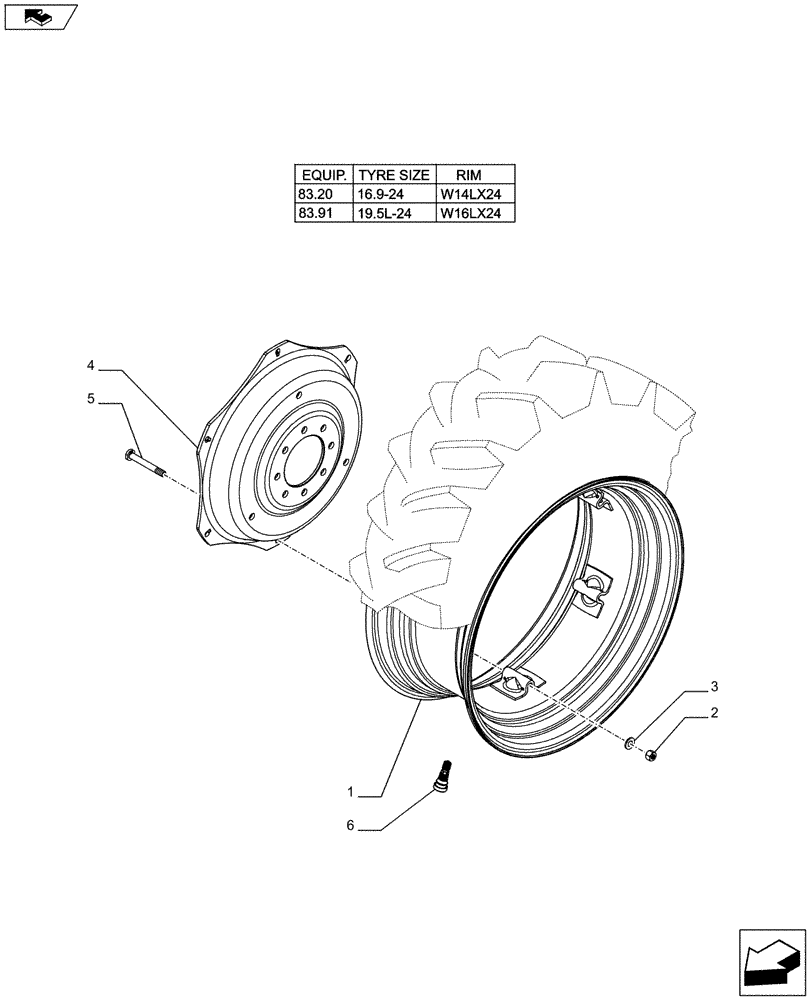

Схема запчастей Case IH FARMALL 65C - (44.520.01[05]) - REAR WHEELS (44) - WHEELS
2
1
6
4
home
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84315238

RIM,W14L x 24, 6 Bolts, CASE Silver

W14L x 24

2шт.

1

84315267

RIM,W16L x 24, 6 Bolts, CASE Silver

W16L x 24

2шт.

2

10790521

NUT,M16 x 1.5, Cl 10

12шт.

3

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

12шт.

4

84313169

WHEEL DISC,515mm DIA, 8 Bolts, CASE Silver

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

12шт.

6

87323751

PNEUMATIC VALVE

2шт.
