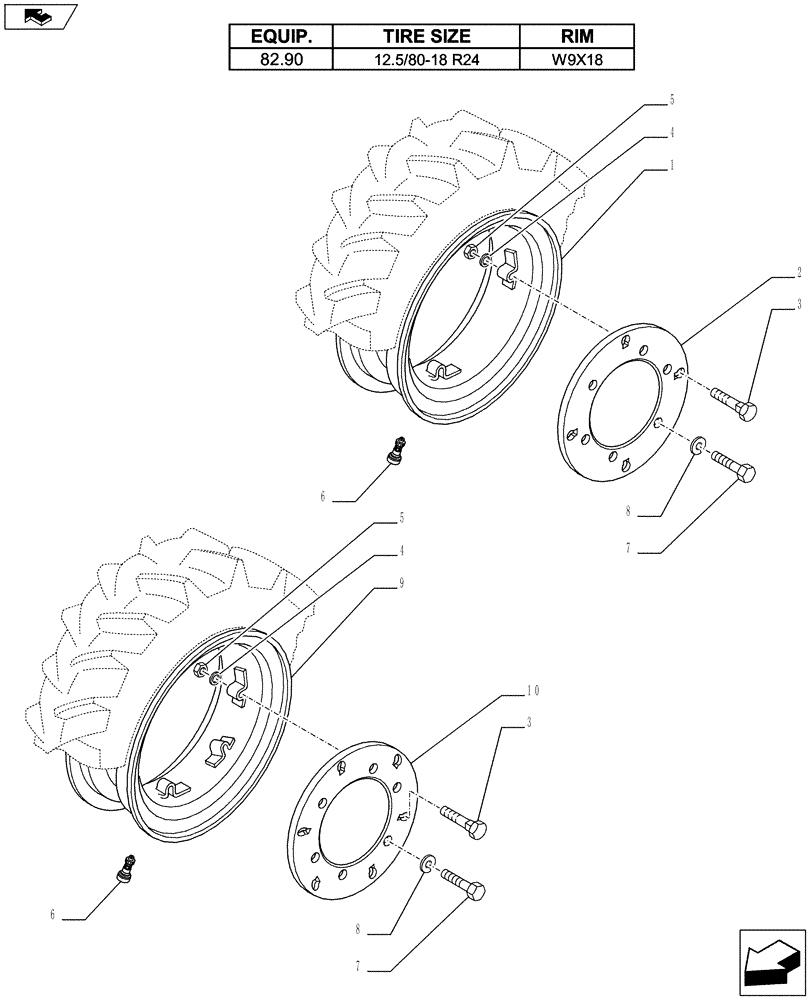

Запчасти Case IH FARMALL 65C (44.511.03[08]) - FRONT WHEELS (44) - WHEELS

1

47130980

RIM,462mm Dia x 228.6mm W, 4 Bolts, CASE Silver

W9 x 18, Serial Range: -C7049

2шт.

2

47130964

WHEEL DISC

D=337, Serial Range: -C7049

2шт.

3

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

1шт.

4

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

1шт.

5

10790521

NUT,M16 x 1.5, Cl 10

1шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

12шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

12шт.

9

84425315

RIM,W9 x 18, 6 Bolts, CASE Silver

W9 x 18, Start Serial: D7049

2шт.

10

84425314

WHEEL DISC,337mm DIA, 6 Bolts, CASE Silver

D=337, Start Serial: D7049

2шт.
