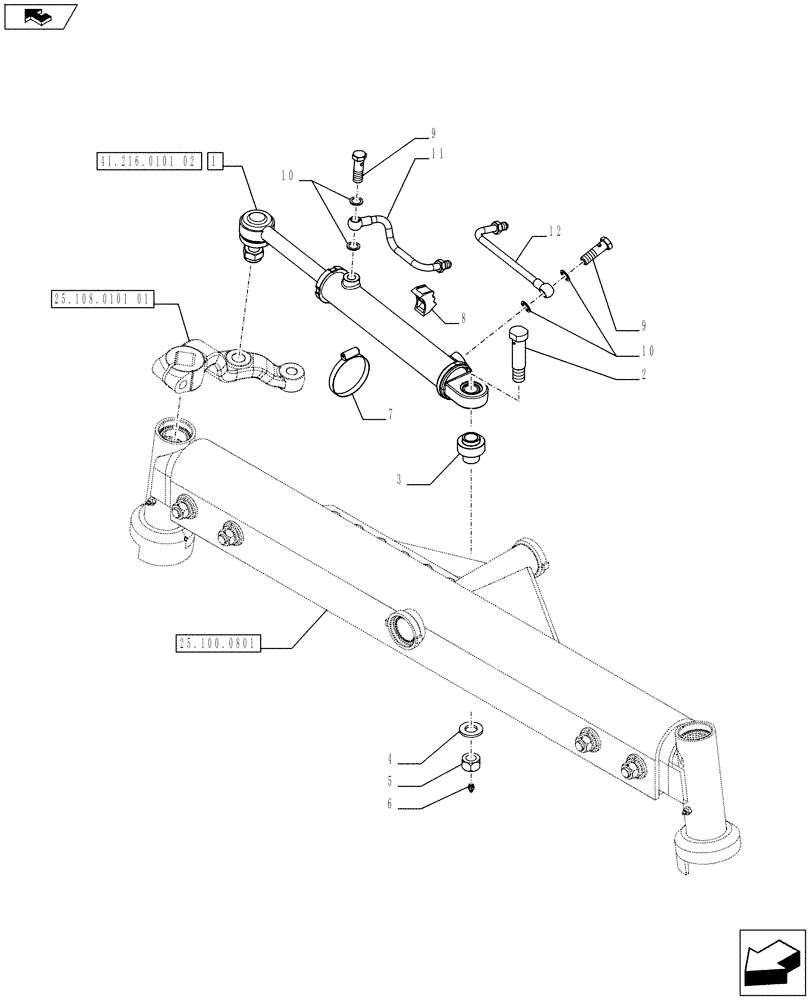

Запчасти Case IH FARMALL 65C (41.216.0101[01]) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (VAR.330581) (41) - STEERING

1

84249611

STEERING CYLINDER,22mm Rod, 215mm Stroke

ASSY

1шт.

2

4997697

PIN,20mm OD x 80mm L

1шт.

3

5102972

BUSHING,20mm ID x 42mm OD x 41mm L

1шт.

4

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

1шт.

5

12576011

NUT,Hex, M18 x 1.5

1шт.

6

82824207

LUBE NIPPLE

1шт.

7

10280060

SEAL,M14.2 x 20 x 1.5

1шт.

8

5121043

SPACER

1шт.

9

4999610

BANJO BOLT

2шт.

10

10280060

SEAL,M14.2 x 20 x 1.5

4шт.

11

84364451

RIGID TUBE

RH

1шт.

12

84364435

RIGID TUBE

LH

1шт.
