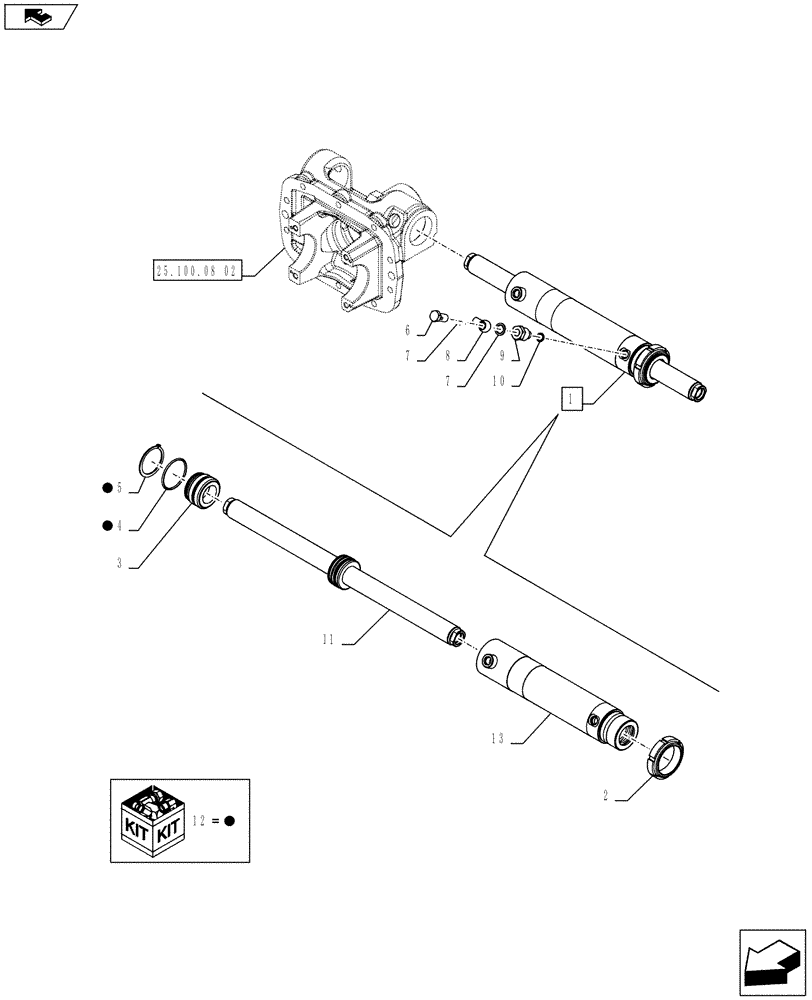

Запчасти Case IH FARMALL 65C (41.216.01) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (41) - STEERING

1

47136495

SERVO STEERING CYL,Double Acting, 36mm Stroke

ASSY, Contains Ref. 12

1шт.

2

47136501

LOCK NUT

1шт.

3

47124936

END PLATE

1шт.

4

47124934

LOCKING RING

1шт.

5

47124935

LOCKING RING

1шт.

6

4864083

BANJO BOLT,M14 x 1.5 x 30mm

2шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

8

10073601

RING

1шт.

9

47124202

HYD CONNECTOR,6 - M14 x 1.5 ORFS

1шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

11

47124922

ROD

1шт.

12

47124937

SEAL KIT

ASSY, Contains Ref. 4, 5

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.
