(41.206.01[02]) - HYDRAULIC PUMP - BREAKDOWN

Запчасти Case IH FARMALL 65C (41.206.01[02]) - HYDRAULIC PUMP - BREAKDOWN (41) - STEERING

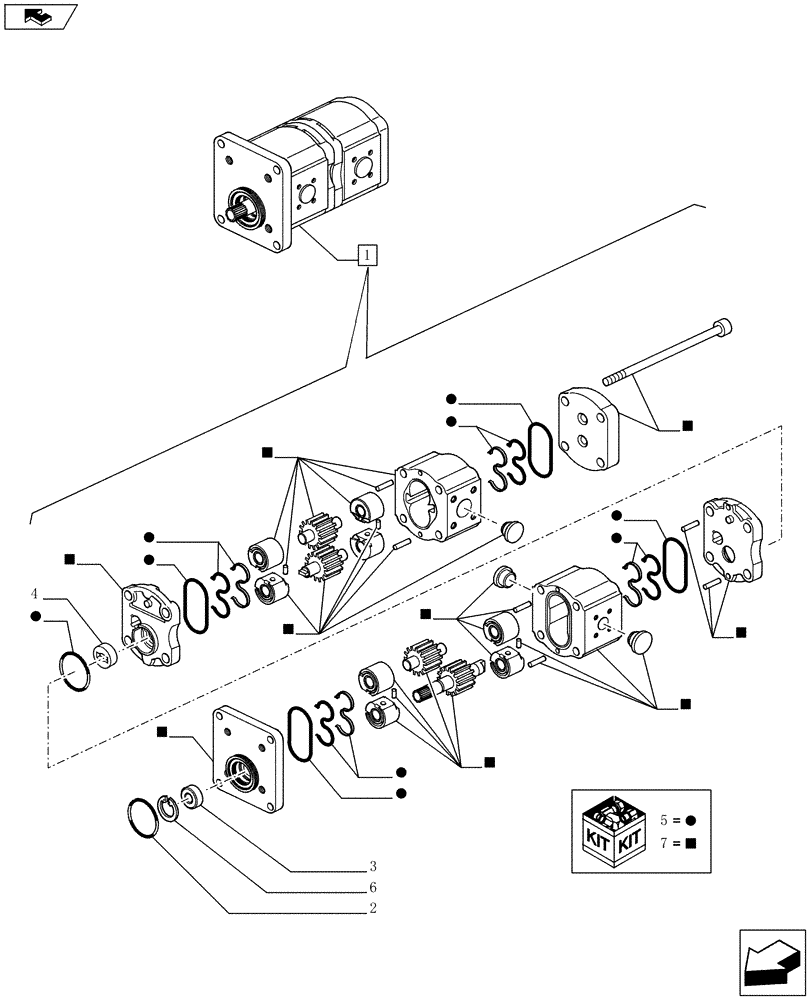

Схема запчастей Case IH FARMALL 65C - (41.206.01[02]) - HYDRAULIC PUMP - BREAKDOWN (41) - STEERING
home
5
3
5
7
1
5
5
5
5
6
7
5
5
7
7
7
5
4
7
7
5
7
7
2
7
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87593047

HYDRAULIC PUMP,19.33 CC

ASSY, 19 + 11, Contains Ref. 2-7

1шт.

1

87593047R

REMAN-HYD PUMP

ASSY, 19 + 11, Contains Ref. 2-7

1шт.

1

87593047

HYDRAULIC PUMP,19.33 CC

Return Number

1шт.

2

11058870

CIRCLIP,30mm ID

1шт.

3

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

4

87311810

BUSHING

1шт.

5

47132368

SEAL KIT

ASSY

1шт.

6

87311809

SEAL

1шт.

7

NSS

NOT SOLD SEPARAT

ASSY

1шт.
