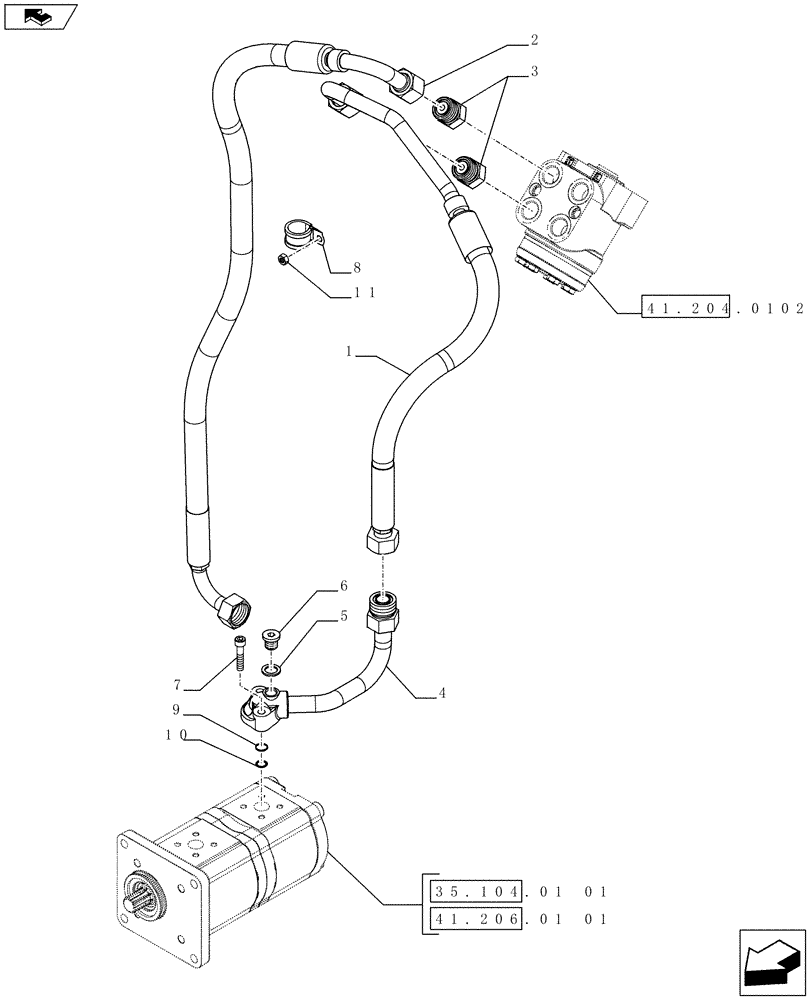

Запчасти Case IH FARMALL 65C (41.200.01[01]) - POWER STEERING - DELIVERY AND RETURN PIPES FROM PUMP (41) - STEERING

1

84234247

HYDRAULIC HOSE

Delivery

1шт.

2

84423440

FLEXIBLE HOSE

Return

1шт.

3

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

2шт.

4

84235087

RIGID TUBE

Pressure from Pump

1шт.

5

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12,2 x 18 x 1,5

1шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

7

14305531

HEX SOC SCREW,M6 x 30mm, Cl 10.9, Full Thd

2шт.

8

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

1шт.

10

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

11

10720124

NUT,Hex, M6 x 1

1шт.
