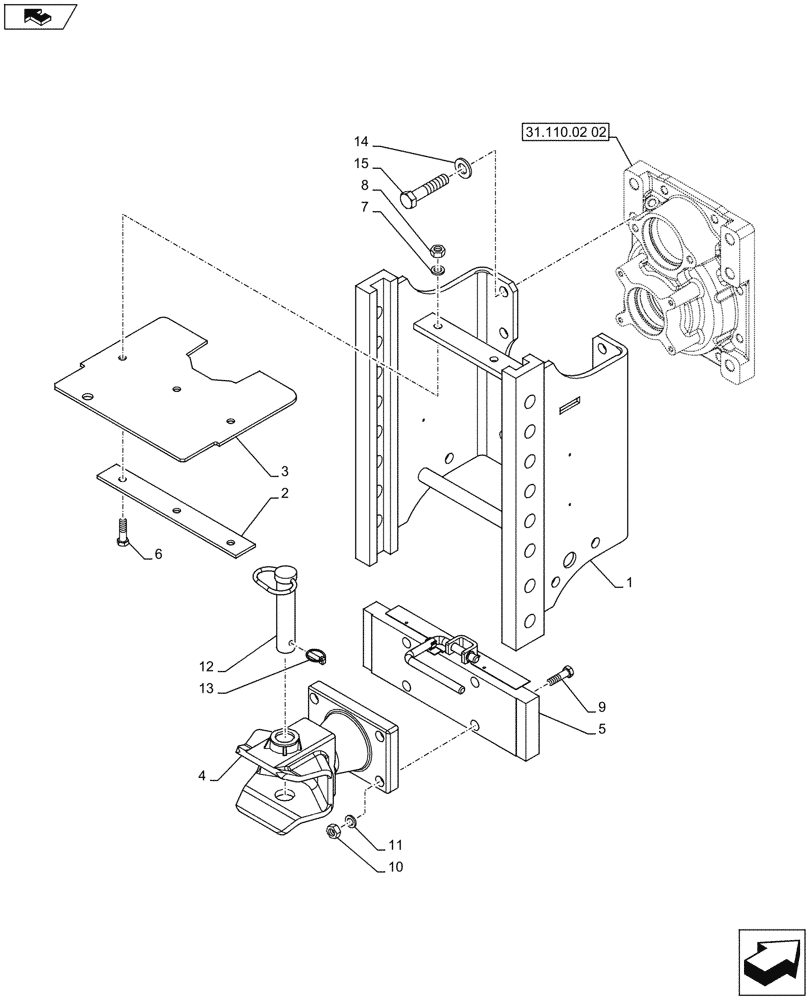

Запчасти Case IH FARMALL 65C (37.100.0107) - SWIVEL TRAILER HITCH (GERMANY) WITH SLIDER SUPPORT - ISO (VAR.330897) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84322754

SUPPORT

1шт.

2

84322757

SUPPORT

1шт.

3

84322756

SHIELD

1шт.

4

84333577

TOW HOOK

1шт.

Manual Trailer Hitch, VAR.330897

1шт.

5

84322755

SKID PLATE

1шт.

6

10978424

BOLT,Hex, M5 x 30mm, Cl 8.8

3шт.

7

12601174

WAVE WASHER,Wave, M4.3

3шт.

8

15896414

NUT,M5, Cl 8

3шт.

9

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

4шт.

10

12164124

NUT,M16 x 1.5, Cl 8

4шт.

11

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

12

84333578

HITCH PIN,31.5mm OD x 175mm L

1шт.

Manual Trailer Hitch, VAR.330897

1шт.

13

47133246

LOCK PIN,7.5mm OD x 42mm L

1шт.

Manual Trailer Hitch, VAR.330897

1шт.

14

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

15

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.
