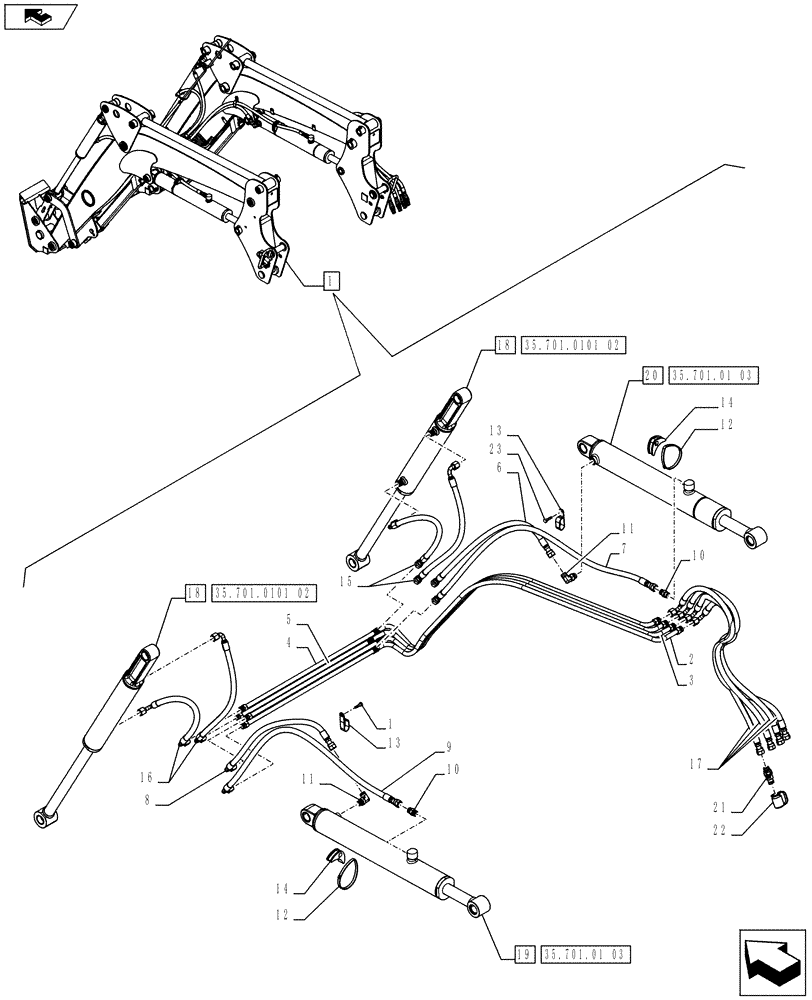

Запчасти Case IH FARMALL 65C (35.701.0101[01]) - FRONT LOADER (SELF LEVELLING) - BREAKDOWN - HYDRAULIC SYSTEM - NAR (VAR.334489-339489) (35) - HYDRAULIC SYSTEMS

1

84321725

LOADER

ASSY, Contains Ref. 2-23

1шт.

See Breakdown in Groups 35.701.01 01 and 82.100.01 02-03-04-05-06 and 90.108.03

1шт.

2

84406384

RIGID TUBE

1шт.

3

84406386

RIGID TUBE

1шт.

4

84406388

RIGID TUBE

1шт.

5

84406387

RIGID TUBE

1шт.

6

84406389

FLEXIBLE HOSE

1шт.

7

84406390

FLEXIBLE HOSE

1шт.

8

84406391

FLEXIBLE HOSE

1шт.

9

84406392

FLEXIBLE HOSE

1шт.

10

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

2шт.

11

83971549

90 ELBOW,13/16"-16 ORFS x 3/4"-16 ORB

2шт.

12

84406396

FIXING STRIP

2шт.

13

5145401

CLAMP

2шт.

14

85805567

BLOCK

2шт.

15

84406397

FLEXIBLE HOSE

2шт.

16

84406398

FLEXIBLE HOSE

2шт.

17

84406192

FLEXIBLE HOSE,1250mm L

L=1250 MM

4шт.

18

84406338

BUCKET CYLINDER

ASSY

2шт.

19

84406289

LIFT CYLINDER

ASSY, LH

1шт.

20

84406290

LIFT CYLINDER

ASSY, RH

1шт.

21

84406394

FITTING

4шт.

22

84406395

PLASTIC PLUG

Yellow

1шт.

22

84406401

PLASTIC PLUG

Red

1шт.

22

84406402

PLASTIC PLUG

Blue

1шт.

22

84406403

PLASTIC PLUG

Green

1шт.

23

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
