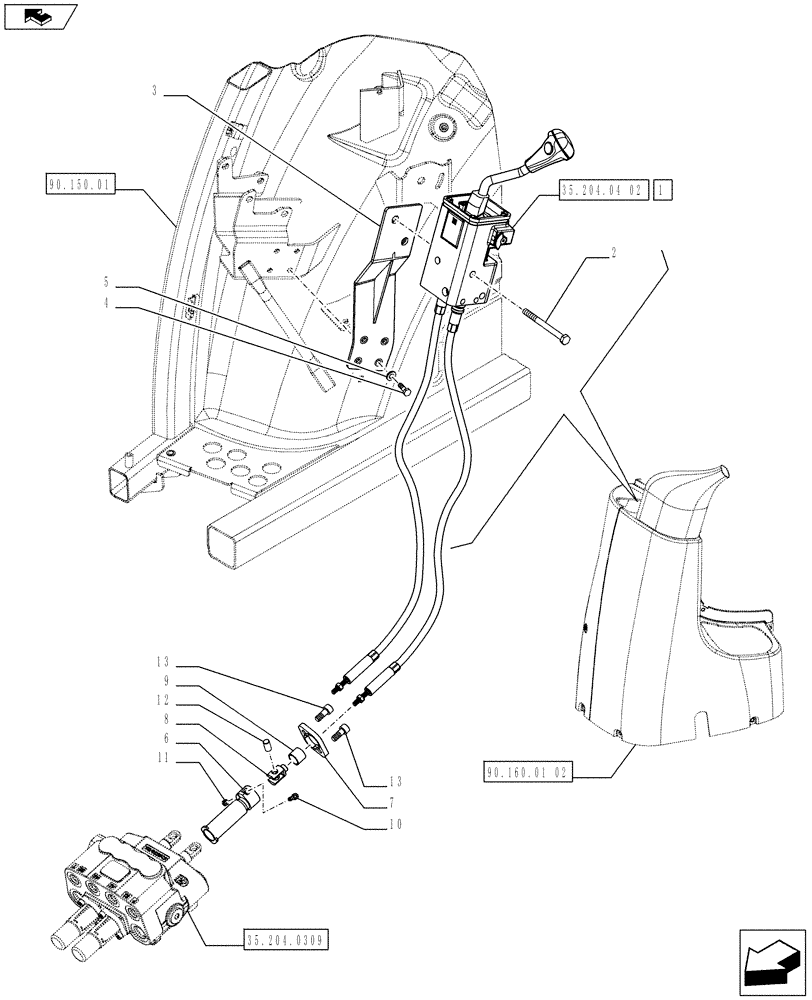

Запчасти Case IH FARMALL 65C (35.204.04[01]) - 2 MID MOUNTS VALVES WITH JOYSTICK - JOYSTICK AND SUPPORT (VAR.336125) (35) - HYDRAULIC SYSTEMS

1

84294395

JOYSTICK

ASSY

1шт.

2

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

3

84294398

BRACKET

1шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

87302881

DISTRIBUTOR,14 - 20 mm ID x 95 mm L

2шт.

7

87303905

FLANGE

2шт.

8

87303906

YOKE

2шт.

9

87303907

BUSHING,16.2mm ID x 19.5mm OD x 15.5mm L

1шт.

10

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

2шт.

11

15896414

NUT,M5, Cl 8

2шт.

12

87332065

PIN,9mm OD x 17mm L

2шт.

13

14304621

SCREW,M5 x 14mm, Cl 8.8, Full Thd

4шт.
