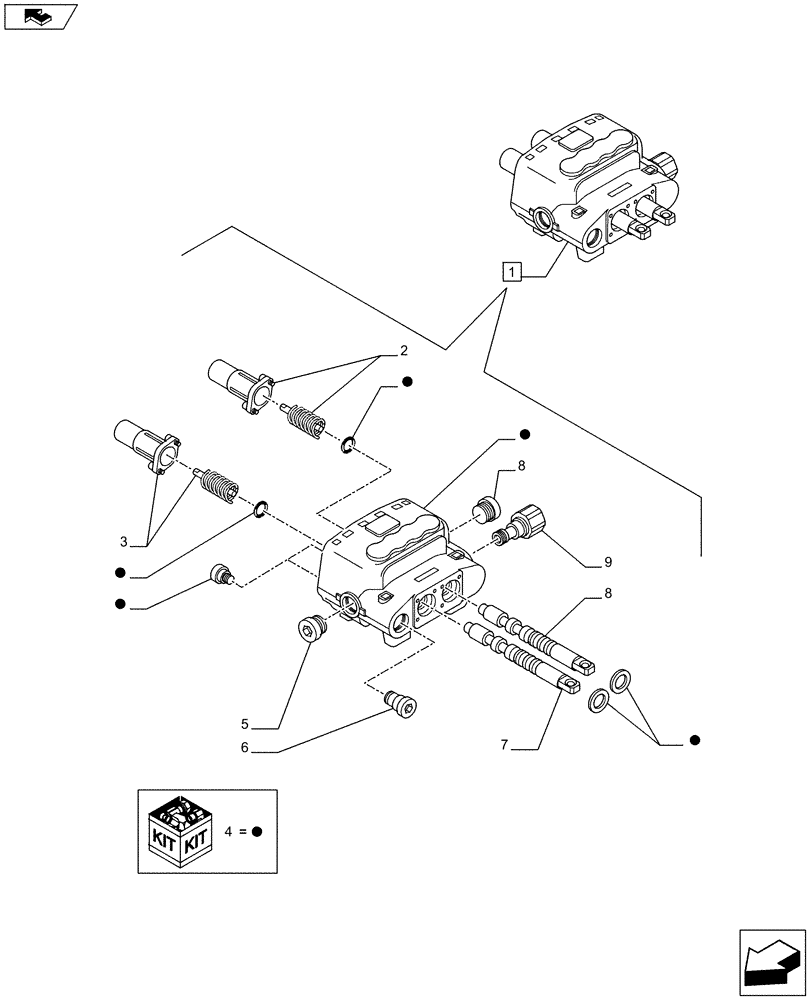

Запчасти Case IH FARMALL 65C (35.204.0308[02]) - TWO FRONT CONTROL VALVES - BREAKDOWN (VAR.336125-338125; VAR.333370 / 743516; VAR.330711 / 743572) (35) - HYDRAULIC SYSTEMS

1

47132112

HYDRAULIC VALVE

ASSY, Contains Ref. 2-9

1шт.

Parts Shown are Also Available in DIA KIT 719124260, See Figure 88.035.07 01

1шт.

2

87306630

CONTROL

1шт.

3

87306631

CONTROL

1шт.

4

87306629

KIT

1шт.

5

87306632

PLUG,M22 x 1.5

2шт.

6

87306633

PLUG

1шт.

7

87306636

SPOOL

1шт.

8

87306635

SPOOL

1шт.

9

87306634

HYD CONNECTOR

1шт.
