(35.204.0307[04A]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - PIPES - ISO (VAR.336195 / 743571) - BEGIN YR 24-APR-2012

Запчасти Case IH FARMALL 65C (35.204.0307[04A]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - PIPES - ISO (VAR.336195 / 743571) - BEGIN YR 24-APR-2012 (35) - HYDRAULIC SYSTEMS

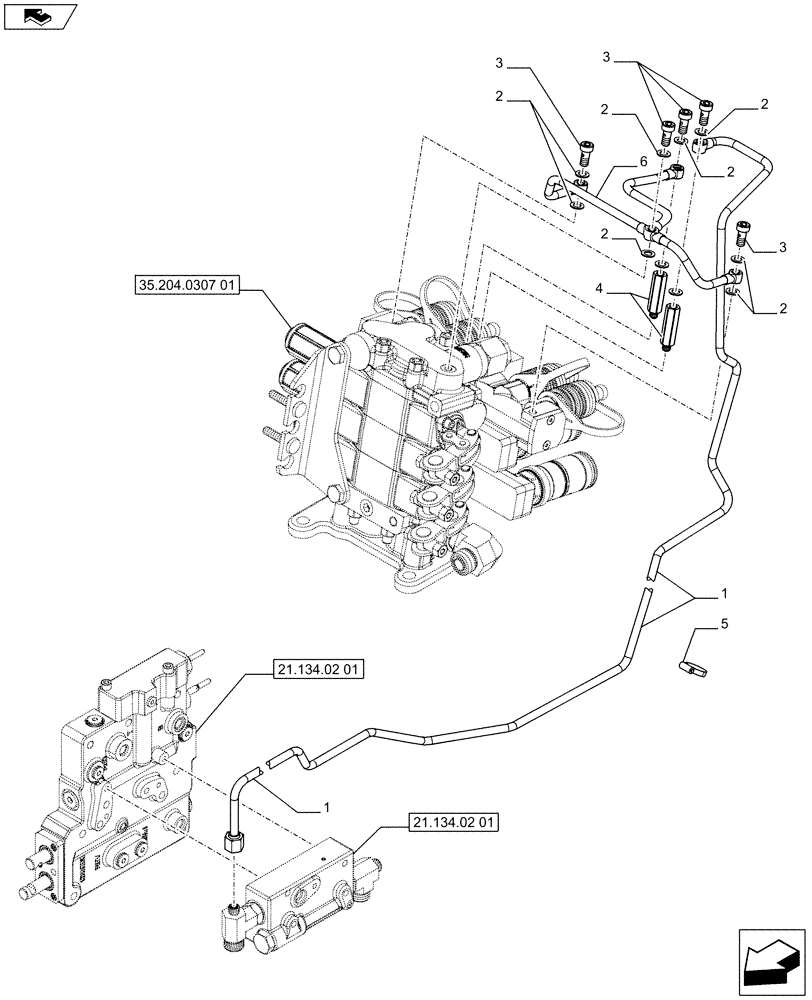

Схема запчастей Case IH FARMALL 65C - (35.204.0307[04A]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - PIPES - ISO (VAR.336195 / 743571) - BEGIN YR 24-APR-2012 (35) - HYDRAULIC SYSTEMS
35.204.0307 01
3
2
2
3
6
21.134.02 01
home
4
1
2
3
2
21.134.02 01
2
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84373320

RIGID TUBE

Diverter

1шт.

2

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

12шт.

3

5175070

BANJO BOLT,M8 x 1.25 x 24mm

4шт.

4

5179506

PROP,M8 x 1.25

2шт.

5

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

6

84516608

RETURN PIPE

Return

1шт.
