(35.204.0307[03]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - PIPES - ISO (VAR.335195 / 743571)

Запчасти Case IH FARMALL 65C (35.204.0307[03]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - PIPES - ISO (VAR.335195 / 743571) (35) - HYDRAULIC SYSTEMS

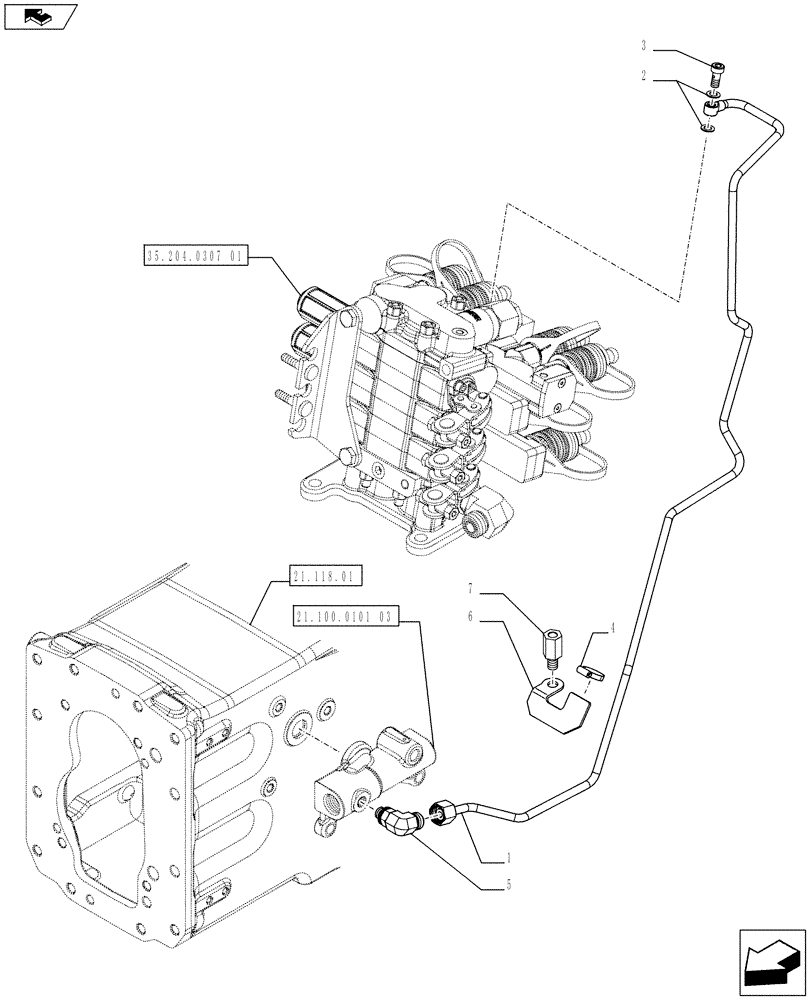

Схема запчастей Case IH FARMALL 65C - (35.204.0307[03]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - PIPES - ISO (VAR.335195 / 743571) (35) - HYDRAULIC SYSTEMS
6
4
home
35.204.0307 01
21.100.0101 03
2
1
5
7
21.118.01
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84257741

RIGID TUBE

Diverter

1шт.

2

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

2шт.

3

5175070

BANJO BOLT,M8 x 1.25 x 24mm

1шт.

4

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

5

84315322

HYD CONNECTOR

1шт.

6

84315226

BRACKET

1шт.

7

84315227

FITTING

1шт.
