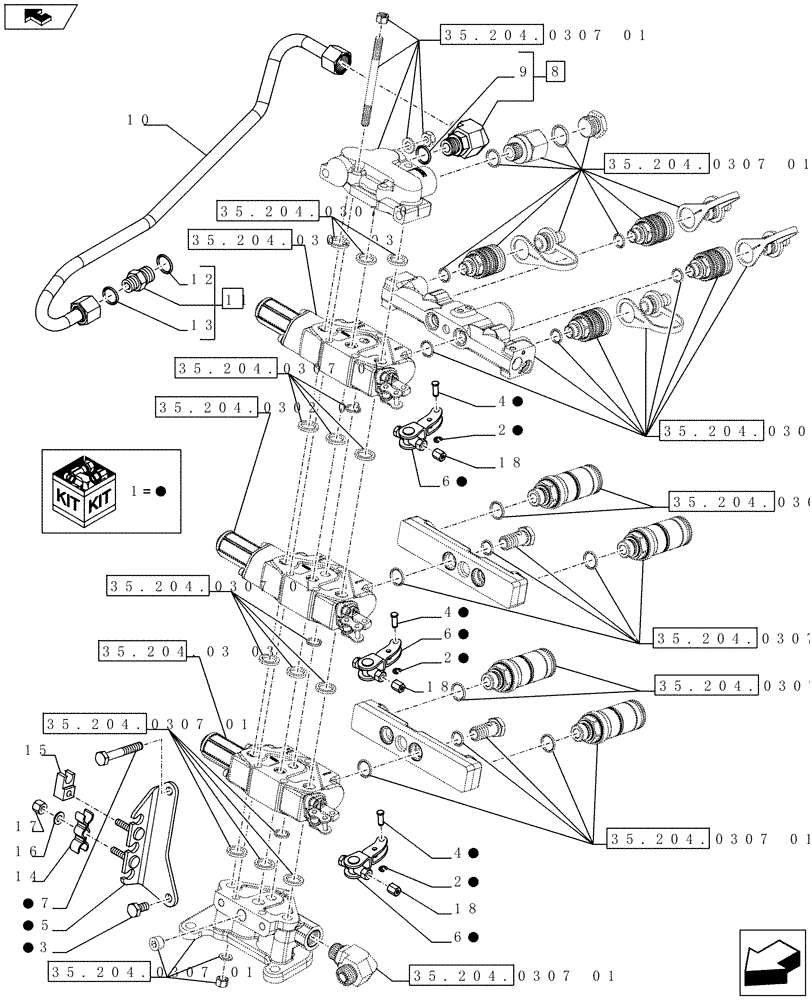

Запчасти Case IH FARMALL 65C (35.204.0307[02]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS(4 STD + 4 DLX) AND DIVERTER - SUPPORTS AND PIPES - ISO (VAR.335195-336195 / 743571) - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS

1

84242882

DISTRIBUTOR

ASSY, Contains Ref. 2 - 7

1шт.

See Also Pag. 01

1шт.

2

11087776

CIRCLIP,Ext., M6, BLO

3шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

4

5172456

PIN,6mm OD x 20mm L

3шт.

5

84282287

BRACKET

1шт.

6

84282370

CONTROL LEVER

3шт.

7

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY, Contains Ref. 9

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

10

84370906

RIGID TUBE

Delivery Lift

1шт.

11

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Contains Ref. 12, 13

1шт.

12

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

5191951

CLAMP,3 Hoses

1шт.

15

47132225

BRACKET

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

17

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

18

82012528

NUT,Hex, M6 x 1

3шт.
