(35.204.0307[01A]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.335195-336195 / 743571) - BEGIN YR 10-MAY-2016

Запчасти Case IH FARMALL 65C (35.204.0307[01A]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.335195-336195 / 743571) - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS

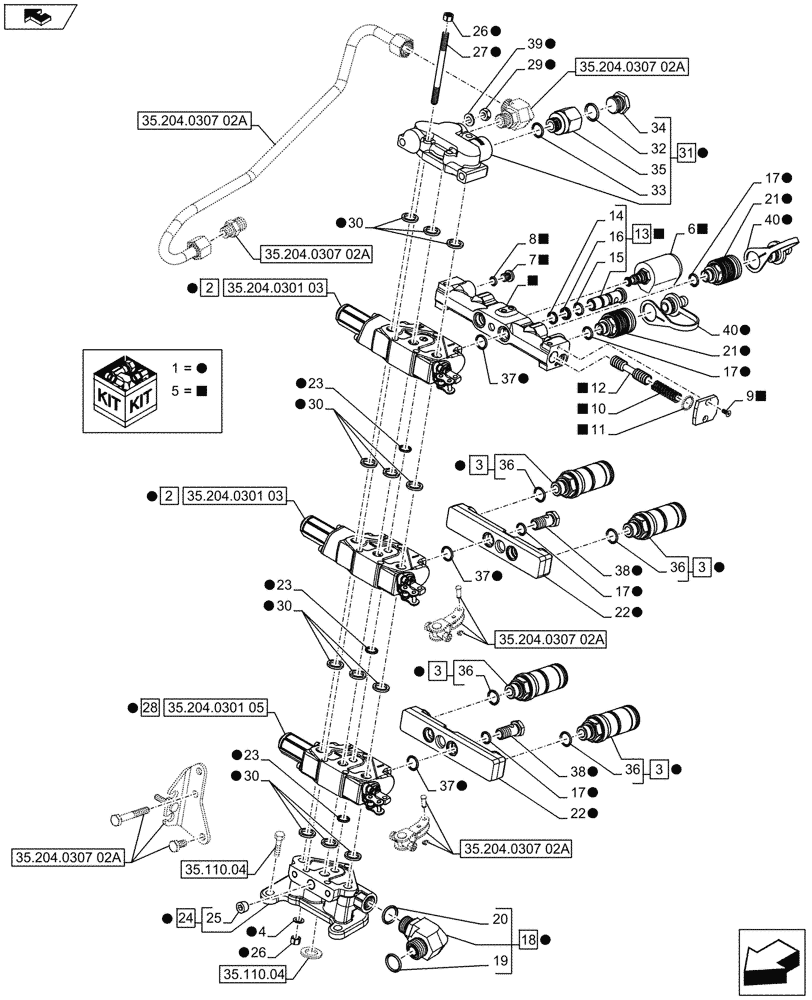

Схема запчастей Case IH FARMALL 65C - (35.204.0307[01A]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS (4 STD + 4 DLX) AND DIVERTER - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.335195-336195 / 743571) - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS
35.110.04
1
5
1
1
1
1
1
1
29
1
26
23
1
3
1
17
2
22
3
5
1
17
5
39
8
27
16
1
12
1
1
25
38
28
5
1
1
30
23
1
1
home
1
1
1
1
38
1
22
5
36
30
17
4
1
32
24
31
5
2
3
13
37
17
5
1
1
11
19
1
1
3
18
23
40
20
36
14
5
1
10
1
5
34
21
1
37
21
30
1
30
1
6
26
7
1
5
33
1
15
36
1
37
40
1
1
1
5
36
9
1
35
35.204.0301 05
35.204.0307 02a
35.204.0307 02a
35.204.0307 02a
35.204.0307 02a
35.204.0307 02a
35.204.0307 02a
35.204.0301 03
35.204.0301 03
35.110.04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47379579

DISTRIBUTOR

ASSY, Contains Ref. 2 - 4, 17, 18, 21 - 24, 26 - 31, 37 - 40

1шт.

See Also Pag. 02A

1шт.

2

84406706

REMOTE CONTROL VALVE

ASSY

2шт.

3

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Contains Ref. 36

4шт.

4

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

5

47131020

BODY

ASSY, Contains Ref. 6 - 13

1шт.

6

5176119

ELECTRO-VALVE,3W - 2p with diode

1шт.

7

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.

8

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

9

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

11

47125558

COVER

2шт.

12

47125557

ROD,16mm OD x 73mm L

2шт.

13

47131017

BANJO BOLT,M18 x 1.5 x 67mm

ASSY, Contains Ref. 14 - 16

2шт.

14

47131201

GASKET KIT

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

47126244

GASKET KIT

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

18

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 19, 20

1шт.

18

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

19

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

21

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

4шт.

22

5185533

HYD CONNECTOR

2шт.

23

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

3шт.

24

84254823

PLATE

ASSY, Contains Ref. 25

1шт.

25

10269601

PLUG,M16 x 1.5

1шт.

26

5116857

NUT,3/8" - 24

6шт.

27

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

28

84406708

DISTRIBUTOR

ASSY

1шт.

29

12164714

NUT,M10 x 1.25, Cl 8

1шт.

30

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

12шт.

31

87396829

CONTROL VALVE

ASSY, Contains Ref. 32 - 35

1шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

34

83957506

PLUG,3/4"

1шт.

35

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

36

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

37

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

M2,62 x 18,72

6шт.

38

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

39

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

40

5179578

PLUG,24mm, Brown

4шт.
