(35.204.0306[01]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS AND DIVERTER - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.337108-339108 / 743750) - END YR 09-MAY-2016

Запчасти Case IH FARMALL 65C (35.204.0306[01]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS AND DIVERTER - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.337108-339108 / 743750) - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS

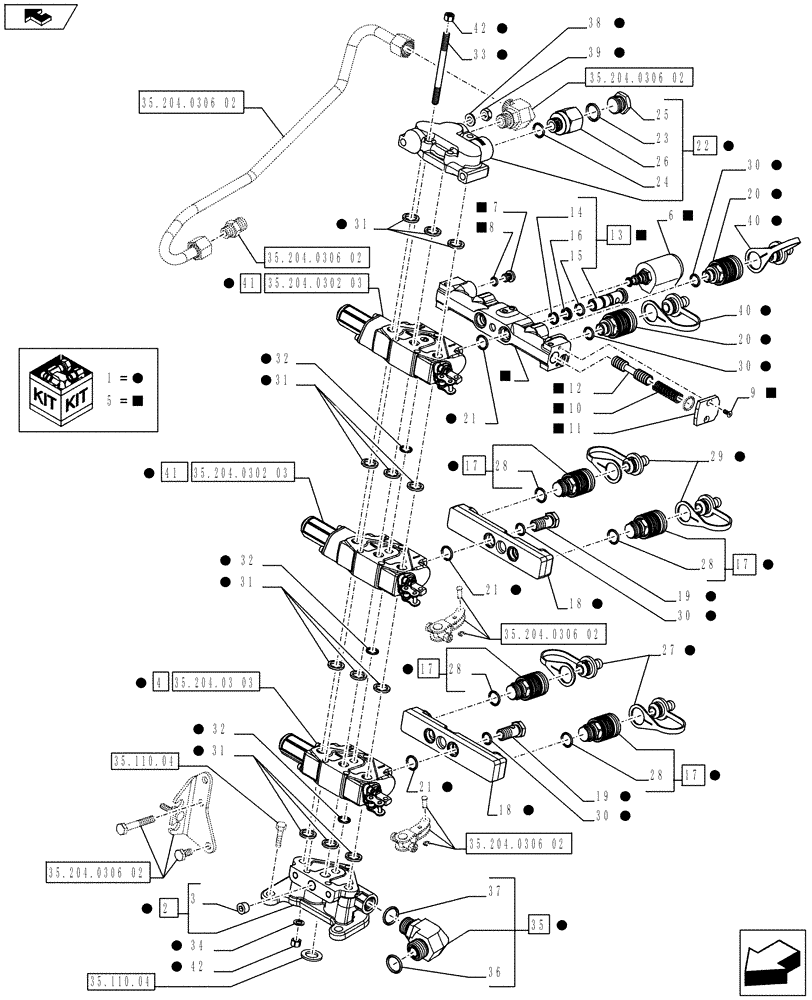

Схема запчастей Case IH FARMALL 65C - (35.204.0306[01]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS AND DIVERTER - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.337108-339108 / 743750) - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS
28
18
5
42
5
41
4
19
40
31
30
5
1
1
1
1
1
8
5
1
21
1
1
28
1
37
5
15
24
19
1
27
3
1
1
38
13
5
1
1
5
40
5
1
21
5
41
14
35.110.04
6
16
20
17
1
1
1
1
28
5
17
1
1
35
1
1
1
26
30
7
30
1
30
18
22
1
11
2
31
1
36
39
1
5
1
1
1
33
17
28
1
1
1
25
29
1
1
21
35.204.0306 02
35.204.0306 02
35.204.0306 02
35.204.0306 02
35.204.03 03
35.204.0302 03
35.204.0302 03
35.204.0306 02
home
35.204.0306 02
35.110.04
1
32
1
1
1
31
31
32
10
17
9
34
23
1
12
1
32
20
42
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84241325

DISTRIBUTOR

ASSY, Contains Ref. 2, 4, 17 - 22, 27, 29 - 35, 38 - 42

1шт.

See Also Pag. 02

1шт.

2

84254823

PLATE

ASSY, Contains Ref. 3

1шт.

3

10269601

PLUG,M16 x 1.5

1шт.

4

84236762

DISTRIBUTOR

ASSY

1шт.

5

47131020

BODY

ASSY, Contains Ref. 6 - 13

1шт.

6

5176119

ELECTRO-VALVE,3W - 2p with diode

1шт.

7

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.

8

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

9

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

11

47125558

COVER

2шт.

12

47125557

ROD,16mm OD x 73mm L

2шт.

13

47131017

BANJO BOLT,M18 x 1.5 x 67mm

ASSY, Contains Ref. 14 - 16

2шт.

14

47131201

GASKET KIT

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

47126244

GASKET KIT

1шт.

17

5179557

COUPLING, QUICK, FEM

ASSY, Contains Ref. 28

4шт.

18

5185533

HYD CONNECTOR

2шт.

19

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

20

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

4шт.

21

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

M2,62 x 18,72

6шт.

22

87396829

CONTROL VALVE

ASSY, Contains Ref. 23 - 26

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

25

83957506

PLUG,3/4"

1шт.

26

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

27

5179576

PLUG,24mm, Green

2шт.

28

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

29

5179577

PLUG,24mm, Blu

2шт.

30

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

31

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

12шт.

32

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

3шт.

33

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

34

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

35

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 36, 37, Years: -23-APR-12

1шт.

35

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

, Start Year: 24-APR-12

1шт.

36

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

38

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

39

12164714

NUT,M10 x 1.25, Cl 8

1шт.

40

5179578

PLUG,24mm, Brown

4шт.

41

84285895

DISTRIBUTOR

ASSY

2шт.

42

5116857

NUT,3/8" - 24

6шт.
