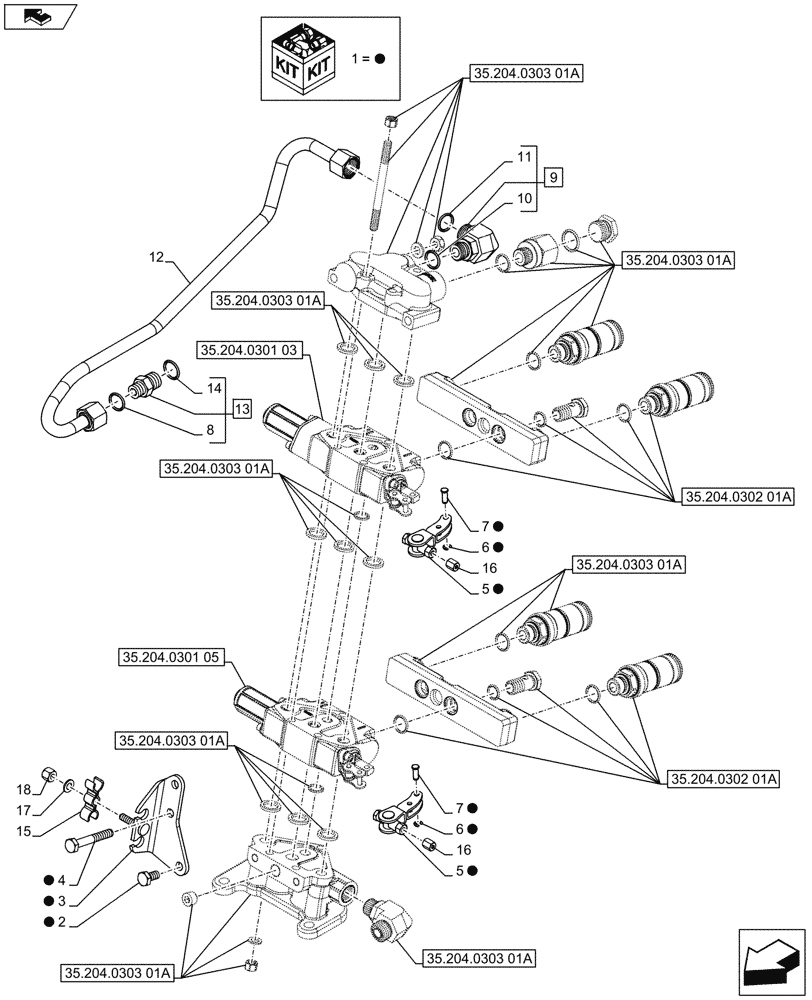

Запчасти Case IH FARMALL 65C (35.204.0303[02A]) - 2 REAR CONTROL VALVES WITH 4 DELUXE COUPLERS - SUPPORTS AND PIPES (VAR.334107 / 743569; VAR.333195) - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS

1

47379591

DISTRIBUTOR

ASSY, Contains Ref. 2 - 7

1шт.

See Also Pag. 01A

1шт.

2

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

84282305

BRACKET

1шт.

4

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

5

84282370

CONTROL LEVER

2шт.

6

11087776

CIRCLIP,Ext., M6, BLO

2шт.

7

5172456

PIN,6mm OD x 20mm L

2шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 10, 11

1шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

84362545

RIGID TUBE

Delivery Lift

1шт.

13

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Contains Ref. 8, 14

1шт.

14

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

5191951

CLAMP,3 Hoses

1шт.

16

82012528

NUT,Hex, M6 x 1

2шт.

17

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

18

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.
