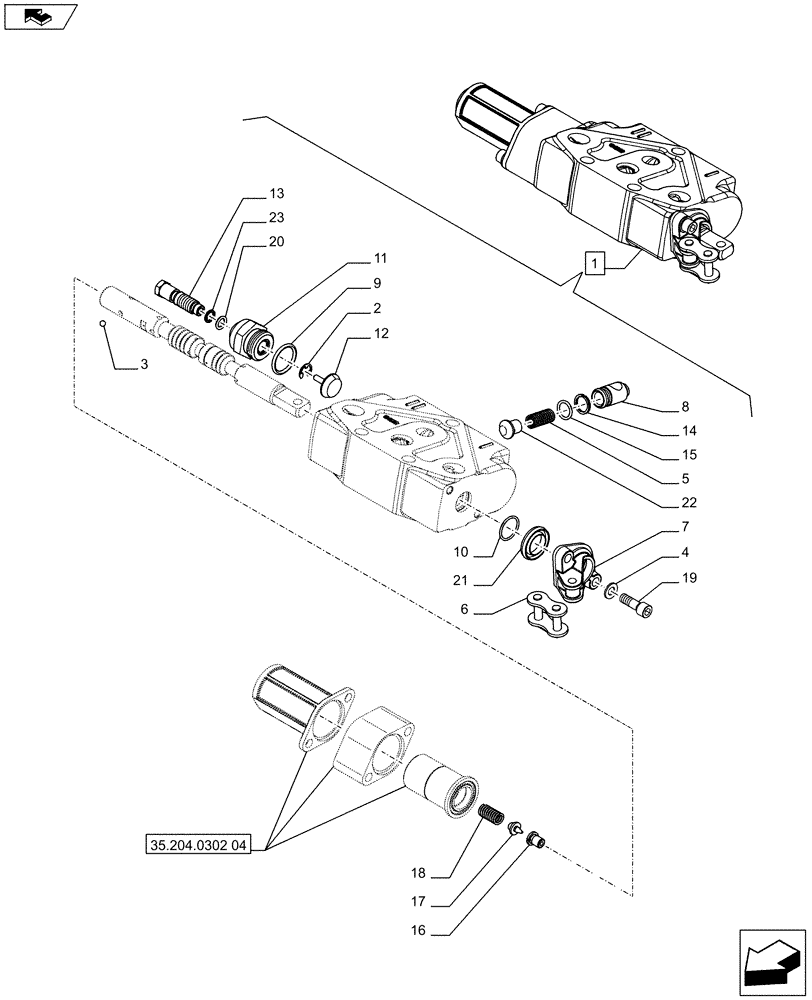

Запчасти Case IH FARMALL 65C (35.204.0302[03]) - REMOTE CONTROL VALVE (S/D WITH KICK-OUT AND FLOAT) - BREAKDOWN (VAR.334108 / 743569) (35) - HYDRAULIC SYSTEMS

1

84285895

DISTRIBUTOR

ASSY, Contains Ref. 2-23

1шт.

See Also Pag. 04

1шт.

Parts Shown are Also Available in DIA KIT 710310260, 710311260, 719108260, 719195260, See Figures 88.035.01 02, 88.035.02 02, 88.035.03 02, 88.035.04 02

1шт.

2

87016950

SNAP RING,M7, Ext

1шт.

3

20063420

BALL,3.96mm OD, Gr 100

3шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

87658153

LINK,19.05mm Pitch

1шт.

7

84283452

SUPPORT

1шт.

8

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

9

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

10

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

11

5136346

BODY,7/8" - 14

1шт.

12

5136347

PIN,3.8mm OD x 15mm L

1шт.

13

5136348

PIN,10mm OD x 37mm L

1шт.

14

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

15

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

16

5143554

PLUG,Slot, M7 x 0.75

1шт.

17

5143555

PIN,5.5mm OD x 12mm L

1шт.

18

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

19

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

20

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

21

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

22

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

23

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.
