Запчасти Case IH FARMALL 65C (35.204.0301[05]) - REMOTE CONTROL VALVE (S/D WITH KICK-OUT) - BREAKDOWN (332195-334107-334108/743569;333195;336108;334195;337108-339108/743750;335195-336195/743571) (35) - HYDRAULIC SYSTEMS

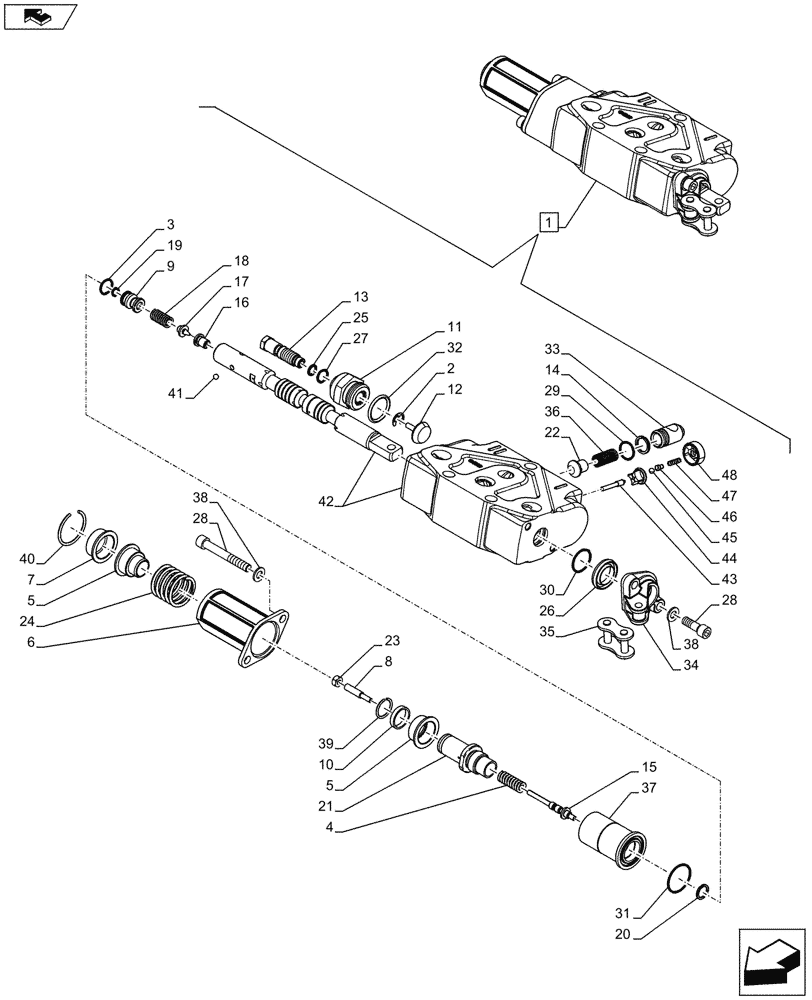

Схема запчастей Case IH FARMALL 65C - (35.204.0301[05]) - REMOTE CONTROL VALVE (S/D WITH KICK-OUT) - BREAKDOWN (332195-334107-334108/743569;333195;336108;334195;337108-339108/743750;335195-336195/743571) (35) - HYDRAULIC SYSTEMS
45
48
7
31
22
6
30
2
40
3
25
20
27
5
32
28
33
36
16
11
42
21
34
19
home
46
38
24
41
29
28
38
13
1
47
8
5
23
12
9
18
39
4
15
37
43
10
26
14
35
17
44

Артикул

Название

Примечание

Количество

1

84406708

DISTRIBUTOR

ASSY, Incl 2 - 48

1шт.

2

11087876

CIRCLIP,M7

1шт.

3

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

4

5143561

SPRING,Compression, 9mm OD x 27mm L

1шт.

5

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

2шт.

6

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

7

5143567

COVER

1шт.

8

5155484

ADJUSTMENT SCREW,M5 x 0.8 x 14mm

1шт.

9

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

10

5143565

SPACER,16mm ID x 18.5mm OD x 3.5mm L

1шт.

11

5136346

BODY,7/8" - 14

1шт.

12

5136347

PIN,3.8mm OD x 15mm L

1шт.

13

5136348

PIN,10mm OD x 37mm L

1шт.

14

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

15

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

16

5143554

PLUG,Slot, M7 x 0.75

1шт.

17

5143555

PIN,5.5mm OD x 12mm L

1шт.

18

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

19

5143558

O-RING,1.78mm Thk x 2.54mm ID

1шт.

20

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

21

5143562

PLUG,Remote spool, M14 x 1

1шт.

22

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

23

15896421

NUT,M5, Cl 10

1шт.

24

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

25

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

26

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

27

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

28

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

29

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

30

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

31

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

32

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

33

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

34

84283452

SUPPORT

1шт.

35

87658153

LINK,19.05mm Pitch

1шт.

36

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

37

5179137

BUSHING,16mm ID x 27mm OD x 23.5mm L

1шт.

38

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

39

13397776

SNAP RING,M16, Int

1шт.

40

13421276

SNAP RING,M28, Int

1шт.

41

20063420

BALL,3.96mm OD, Gr 100

4шт.

42

47641361

DISTRIBUTOR

Remote Body and Spool

1шт.

43

84583579

PUSH ROD,26.8mm L

1шт.

43

47627683

PUSH ROD,27.0mm L

1шт.

43

84583583

PUSH ROD,26.4mm L

1шт.

43

84583582

PUSH ROD,26.6mm L

1шт.

43

47627682

PUSH ROD,26.2mm L

1шт.

44

47441337

VALVE POPPET,13mm OD x 9.5mm L

1шт.

45

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

46

84587372

PIN,3mm OD x 4mm L

1шт.

47

87750880

VALVE SPRING,Compression, 3.8mm OD x 11.5mm L

1шт.

48

47439670

RETAINER CUP,M18 x 1.5 x 6.5mm Thk

No-Leak Valve

1шт.

Выбрано товаров: 52
