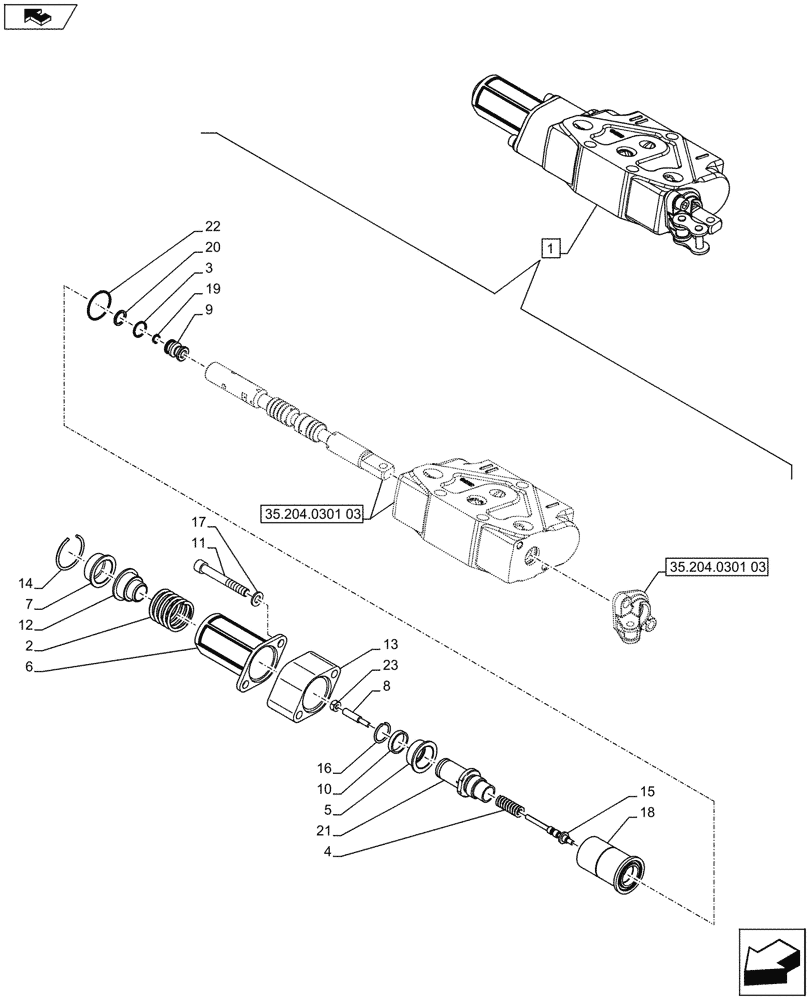

Запчасти Case IH FARMALL 65C (35.204.0301[04]) - REMOTE CONTROL VALVE (WITH FLOAT) - BREAKDOWN (334107-334108/743569;333195;336108;334195;337108-339108/743750;335195-336195/743571) (35) - HYDRAULIC SYSTEMS

1

84406706

REMOTE CONTROL VALVE

ASSY, Incl 2 - 23

1шт.

See Also Pag. 03

1шт.

2

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

3

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

4

5163369

SPRING,Compression, 9mm OD x 38mm L

1шт.

5

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

1шт.

6

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

7

5143567

COVER

1шт.

8

5163362

ADJUSTMENT SCREW,Hdls Hex Skt, M3.5 x 10mm

1шт.

9

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

10

5143576

SPACER,13mm ID x 18.5mm OD x 5mm L

1шт.

11

5143621

HEX SOC SCREW,6.35mm OD x 48.5mm L

2шт.

12

5143575

CUP,13mm ID x 21.5mm OD x 18mm Thk

1шт.

13

5143578

SPACER,28mm ID x 32mm OD x 29.5mm L

1шт.

14

13421276

SNAP RING,M28, Int

1шт.

15

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

16

5143577

SNAP RING,11.2mm D x 1.6mm Thk

1шт.

17

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

18

5179066

BUSHING,16mm ID x 27mm OD x 47mm L

1шт.

19

5143558

O-RING,1.78mm Thk x 2.54mm ID

1шт.

20

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

21

5163365

PLUG,M14 x 1.5

1шт.

22

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

23

15896421

NUT,M5, Cl 10

1шт.
