Запчасти Case IH FARMALL 65C (35.204.0301[02]) - 1 REAR CONTROL VALVE WITH 2 DELUXE COUPLERS - SUPPORTS AND PIPES - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS

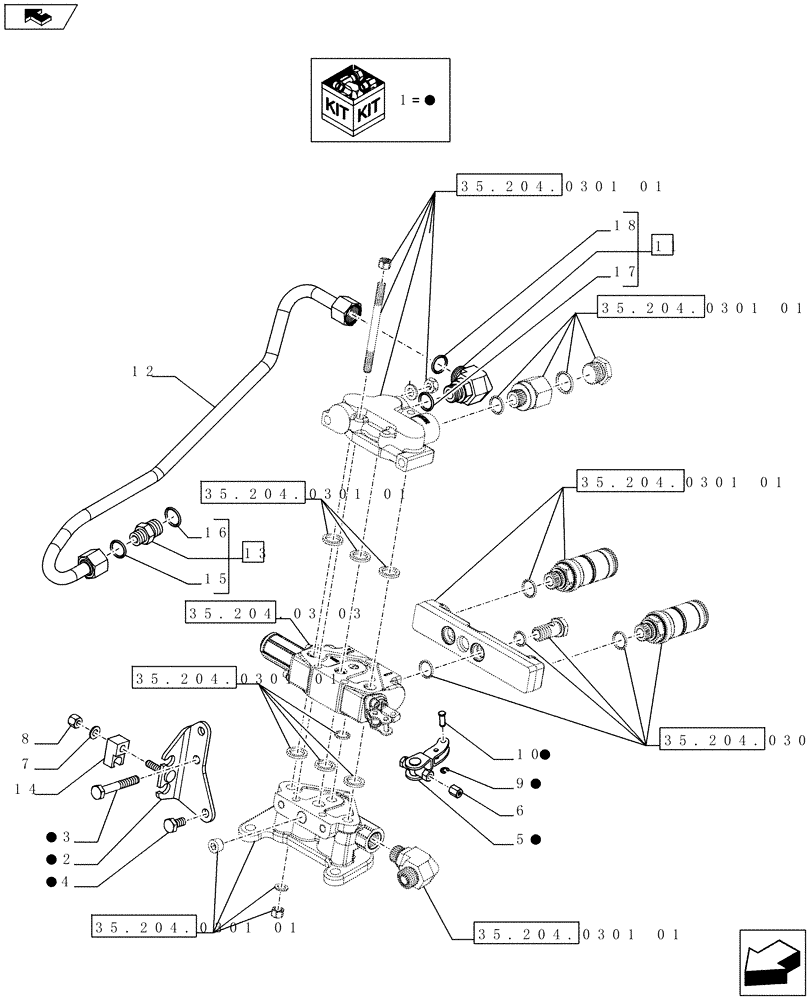

Схема запчастей Case IH FARMALL 65C - (35.204.0301[02]) - 1 REAR CONTROL VALVE WITH 2 DELUXE COUPLERS - SUPPORTS AND PIPES - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS
15
1
13
11
17
14
1
16
1
9
10
1
12
5
7
2
1
4
1
18
1
home
8
35.204.0301 01
35.204.0301 01
35.204.0301 01
35.204.0301 01
35.204.0301 01
35.204.0301 01
35.204.0301 01
35.204.0301 01
35.204.03 03
6
3
1

Артикул

Название

Примечание

Количество

1

84243406

DISTRIBUTOR

ASSY, Contains Ref. 2 - 5, 9, 10

1шт.

See Also Pag. 01

1шт.

2

84282305

BRACKET

1шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

84282370

CONTROL LEVER

1шт.

6

82012528

NUT,Hex, M6 x 1

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

9

11087776

CIRCLIP,Ext., M6, BLO

1шт.

10

5172456

PIN,6mm OD x 20mm L

1шт.

11

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 17, 18

1шт.

12

84362538

RIGID TUBE

Delivery Lift

1шт.

13

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Contains Ref. 15, 16

1шт.

14

47132225

BRACKET

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 19
