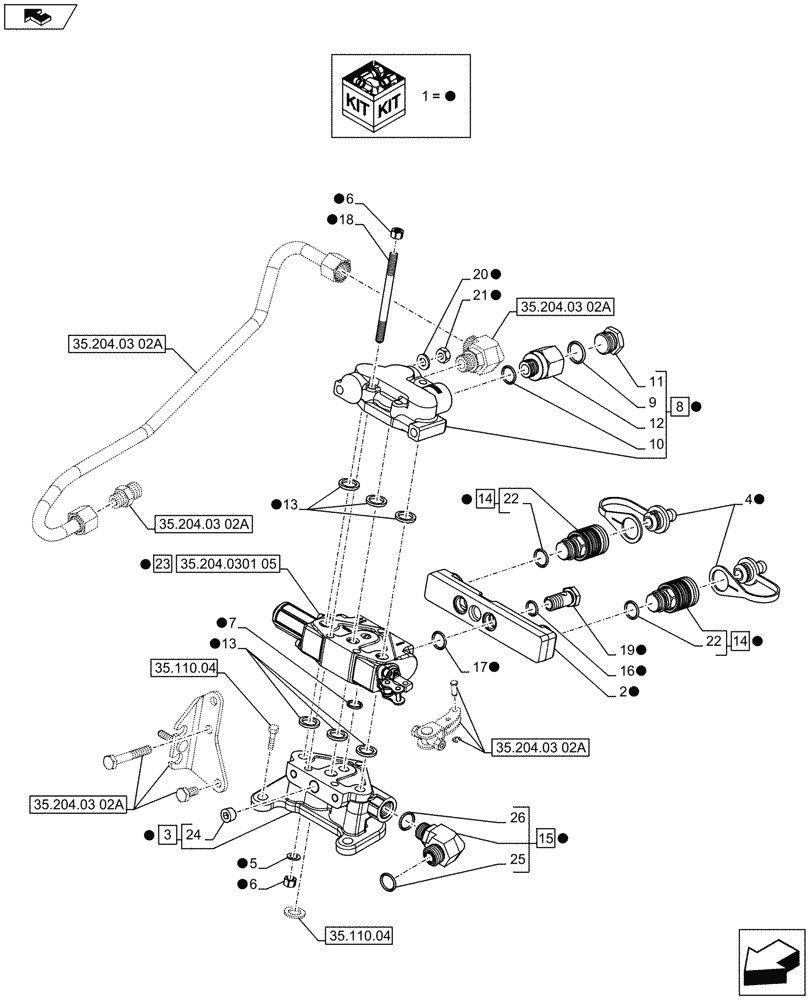

Запчасти Case IH FARMALL 65C (35.204.03[01A]) - 1 REAR CONTROL VALVE WITH 2 COUPLERS - CONTROL VALVE AND QUICK COUPLERS - ISO - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS

1

47379592

DISTRIBUTOR

ASSY, Contains Ref. 2 - 8, 13 - 21, 23

1шт.

See Also Pag. 02A

1шт.

2

5185533

HYD CONNECTOR

1шт.

3

84254823

PLATE

ASSY, Contains Ref. 24

1шт.

4

5179576

PLUG,24mm, Green

2шт.

5

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

6

5116857

NUT,3/8" - 24

6шт.

7

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

1шт.

8

87397264

SUPPORT

ASSY, Contains Ref. 9 - 12

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

83957506

PLUG,3/4"

1шт.

12

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

13

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

6шт.

14

5179557

COUPLING, QUICK, FEM

ASSY, Contains Ref. 22

2шт.

15

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 25, 26

1шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

17

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

18

5150104

STUD,3/8" - 24 x 5"

3шт.

19

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

20

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

21

12164714

NUT,M10 x 1.25, Cl 8

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

23

84406708

DISTRIBUTOR

ASSY

1шт.

24

10269601

PLUG,M16 x 1.5

1шт.

25

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

26

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
